For HP Internal Use Only

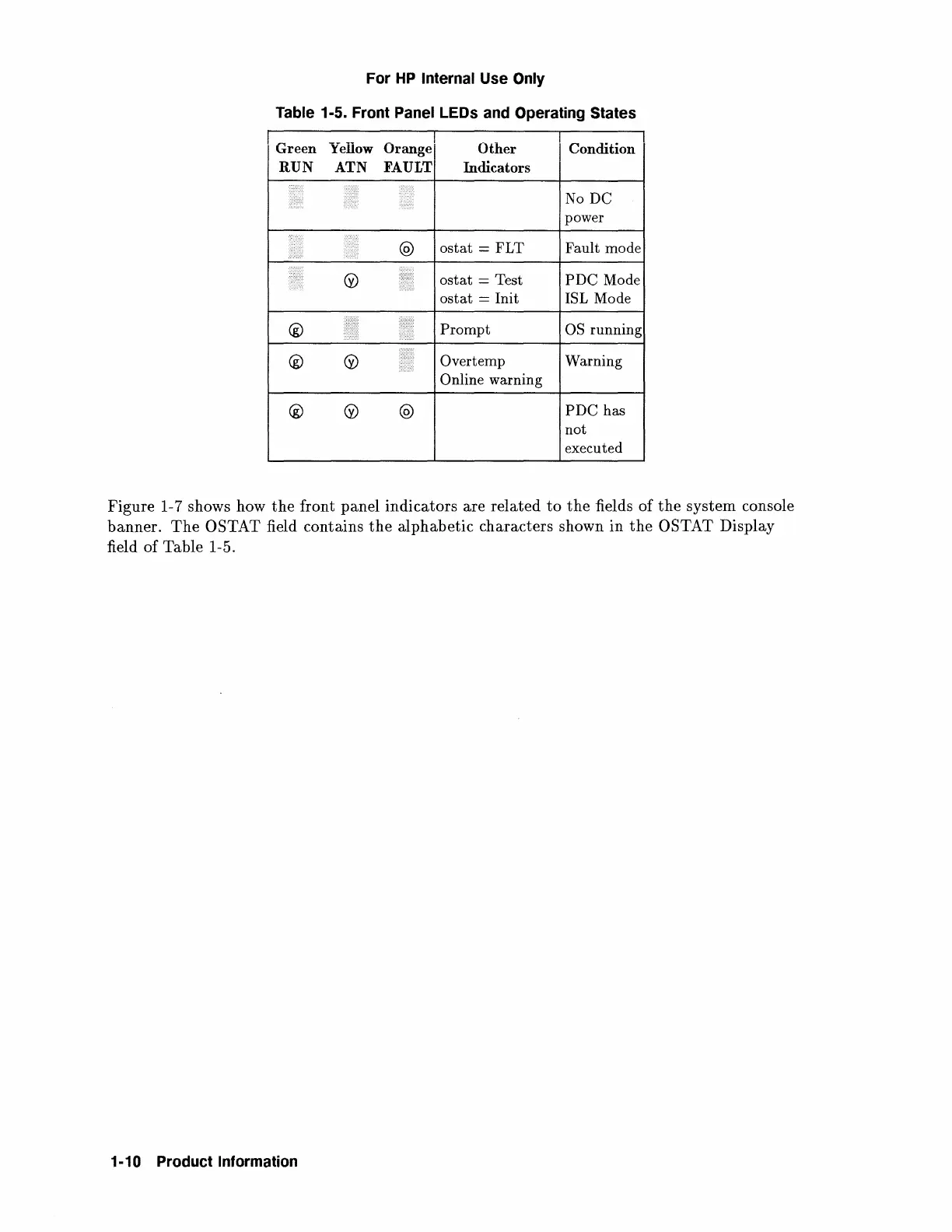

Table
1-5. Front Panel LEOs and Operating States
Green Yellow
Orange
I
Other Condition
RUN ATN FAULT
Indicators
No DC
power
ostat = FLT
Fault mode
ostat =Test PDC Mode
ostat = Init ISL Mode
@ Prompt
OS running
@ Overtemp Warning
Online warning
@ G) @ PDC has
not
executed
Figure 1-7 shows how the front panel indicators are related to the fields of the system console
banner. The OSTAT field contains the alphabetic characters shown in the OSTAT Display
field of Table 1-5.
1·1 0 Product Information
