Note
•
For HP Internal Use Only

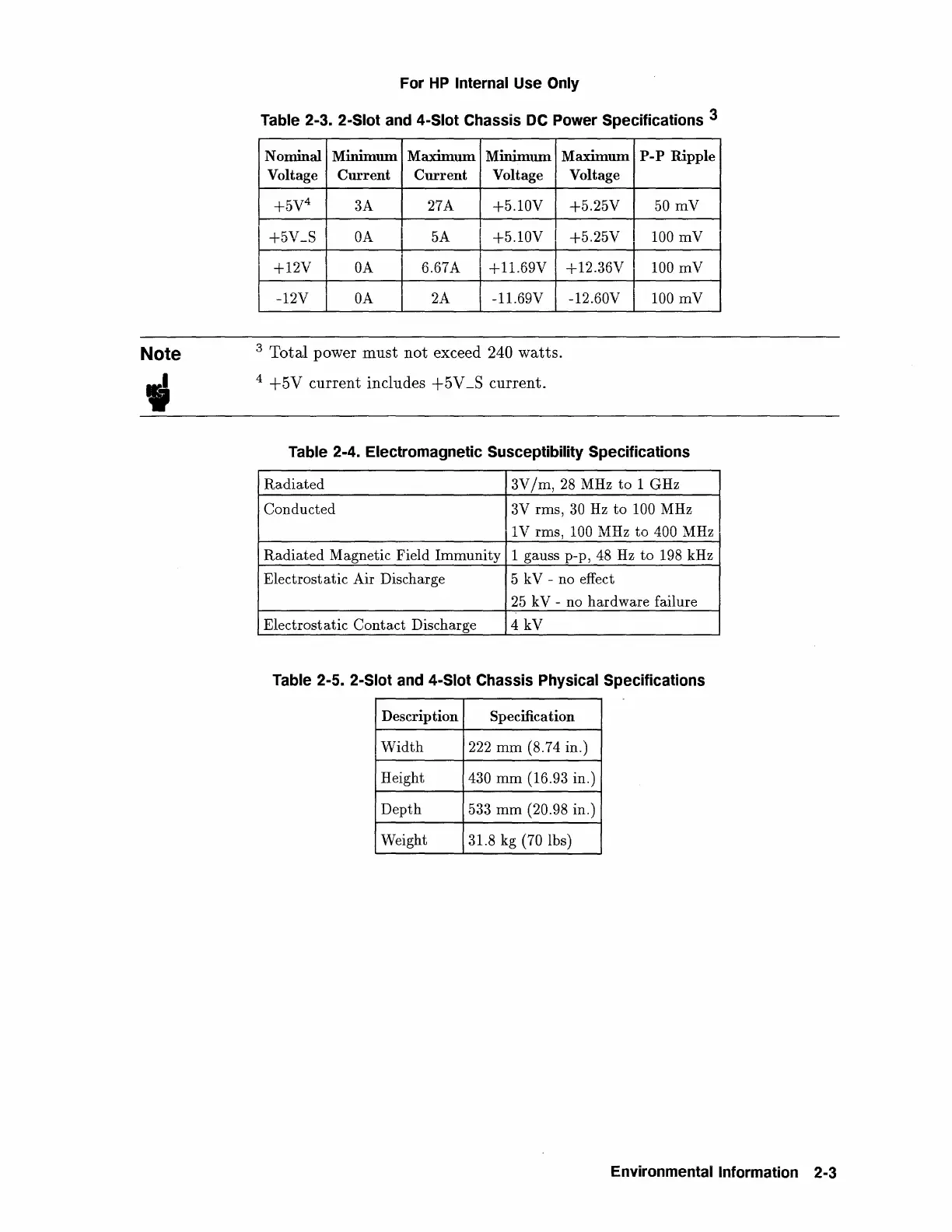

Table 2-3. 2-Siot and 4-Siot Chassis DC Power Specifications 3
Nominal Minimum Maximum
Minimum
Maximum P-P Ripple
Voltage
Current
Current Voltage Voltage
+5V
4
3A 27A
+5.10V +5.25V 50 mV
I +5V _s
OA
I
5A
+5.10V +5.25V
I
100 mV
+12V
OA 6.67A
+11.69V
+12.36V 100 mV
-12V
OA
2A -11.69V -12.60V
100 mV
3
Total power must not exceed 240 watts.
4
+5V current includes +5V _S current.
Table 2-4. Electromagnetic Susceptibility Specifications
Radiated
3V
/m, 28 MHz to 1 GHz
Conducted 3V rms, 30Hz to 100 MHz
1
V rms, 100 MHz to 400 MHz
Radiated Magnetic Field Immunity 1 gauss p-p,
48 Hz to 198kHz
Electrostatic Air Discharge 5 kV- no effect
25 kV- no hardware failure
Electrostatic
Contact Discharge
4 kV
Table 2-5. 2-Siot and 4-Siot Chassis Physical Specifications
Description
Specification
Width
222 mm (8.74 in.)
Height
430 mm (16.93 in.)
Depth
533
mm (20.98 in.)
Weight
31.8 kg (70 lbs)
Environmental Information 2-3
