3-58
Performance Tests
External 2Mb/s Mux/Demux (Options UKJ, [USA], UKN, [USA])

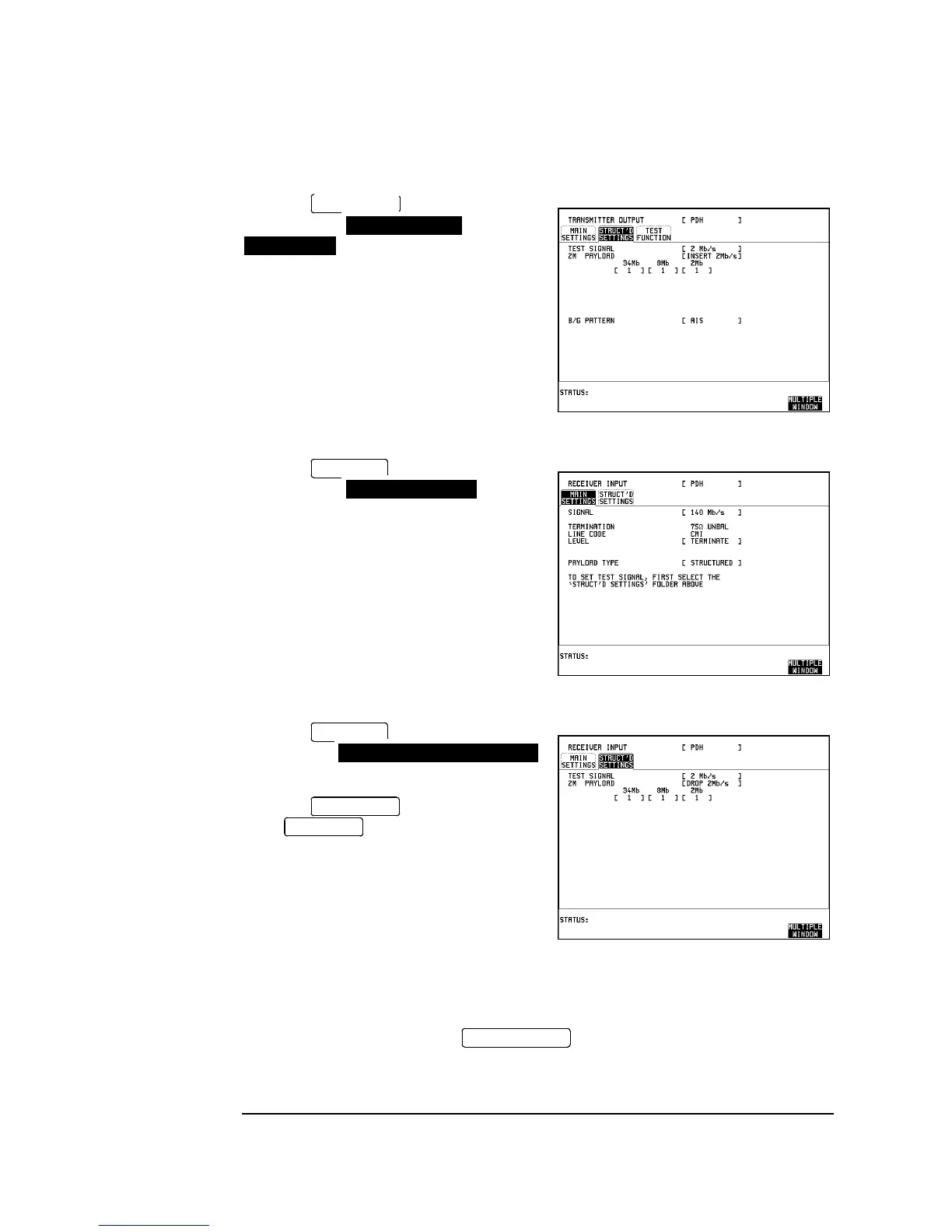

6. Press on the HP 37717C
and set up the
display as shown opposite.
7. Press on the HP 37717C
and set up the display
as shown opposite.
8. Press on the HP 37717C
and set up the
display as shown opposite.
9. Press on the Test Set.
Press PDH on the Test Set and
ensure that the Bit Error Count and Code
Error Count are both zero.
10. Press SINGLE error add key on the Test
Set and ensure the Bit Error count
increments by one each time the key is
pressed.
11. Disconnect the UUT Drop Port from the Test Set and connect this to the
oscilloscope Input 1 via a 75 termination and "T" connector. Set the oscilloscope
termination to 1M and press .
TRANSMIT
STRUCTURED
SETTINGS
RECEIVE
MAIN SETTINGS
RECEIVE
STRUCTURED SETTINGS
RUN/STOP
RESULTS
AUTOSCALE
