Performance Tests
ETSI/ANSI Receiver Equalization (Option 110)
4. Press RESULTS [TROUBLE SCAN] , then RUN/STOP key to start the
measurement.
5. Ensure that NO TROUBLE is displayed on the RESULTS page after 30 seconds.
6. Press RUN/STOP key to stop the measurement.
2.048Mb/s Equalization
1. Press OTHER key, then SETTINGS CONTROL softkey, then set the
TRANSMITTER and RECEIVER to COUPLED.
2. Select the HP 37717C TRANSMIT

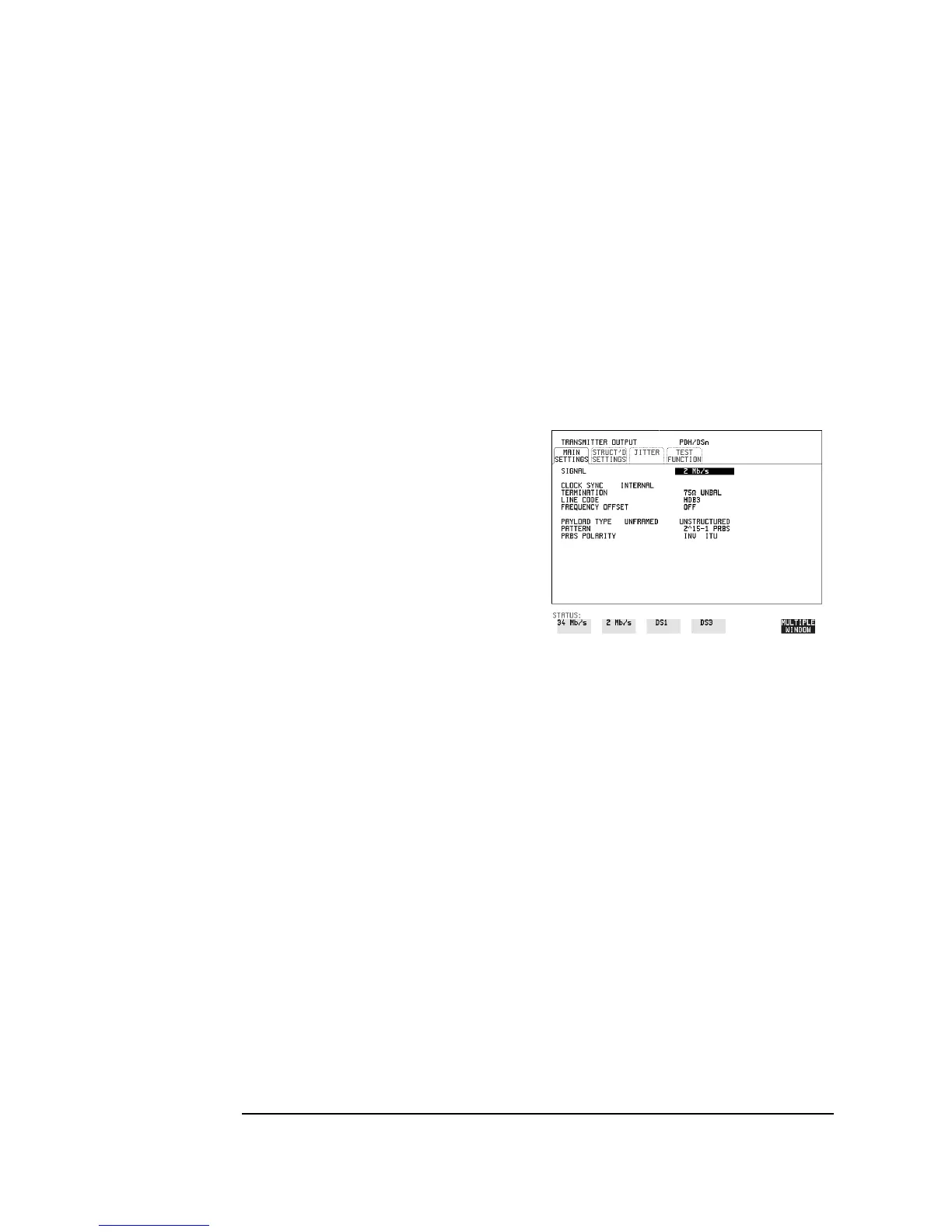

page, and set as follows;
3. Connect Cable Simulator #1 (see “Recommended Test Equipment” in Chapter 1
on Page 67) between the HP 37717C Transmitter Output and Receiver Input ports.
4. Press RESULTS [TROUBLE SCAN] , then RUN/STOP key to start the
measurement.
5. Ensure that NO TROUBLE is displayed on the RESULTS page after 30 seconds.
6. Press RUN/STOP key to stop the measurement.
