3-147
P
erformance T
ests
T
ransmitted Jitter/W
ander Amplitude Accuracy (Option A3K [A3Q])
2.
Select
and
setup the T
est HP 37717C display as sho
wn
opposite.
3.

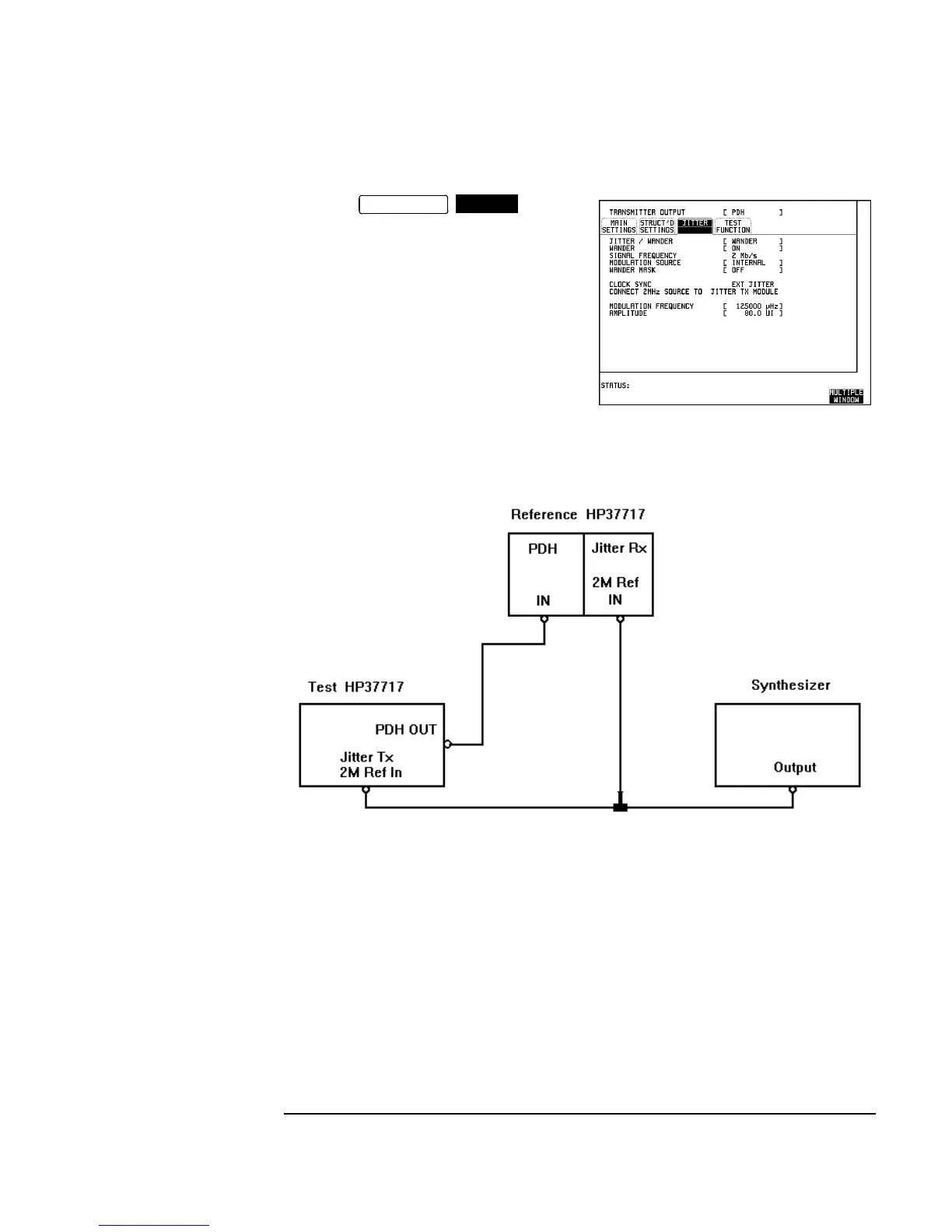

Connect up the equipment as sho
wn in Figure 3-52.
Figure 3-52
W
ander Generation
4.
Set the Synthesizer to Frequency 2.048 MHz and Output Le
v
el 5V pk_pk.
TRANSMIT
JITTER
255
257
