3-156
P
erformance T
ests
W
ander/Slips Measurement (Options UHN, [US9], A1M [A1Q], A1N
[A1R], A1P [A1S], A3L [A3M], A3V [A3W], A3N [A3P])
Slips and W
ander
13.

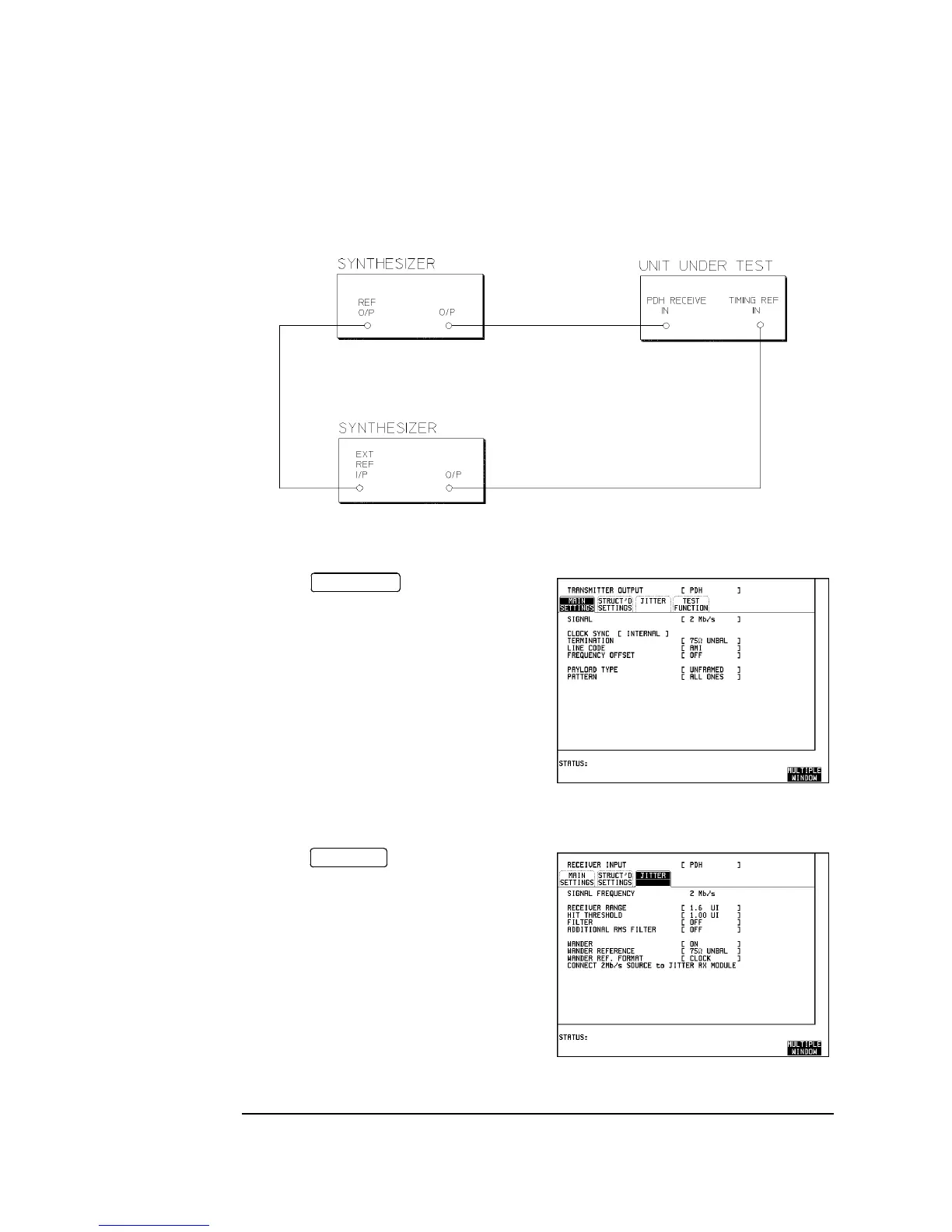

Connect up the equipment as sho
wn in Figure 3-53.
Figure 3-53
Slips and W
ander T
est Setup
14.
Press
and set up the
Display as sho
wn opposite.
15.
Press
and set up the display
as sho
wn opposite.
TRANSMIT
RECEIVE
264
266
