3-211
Performance Tests

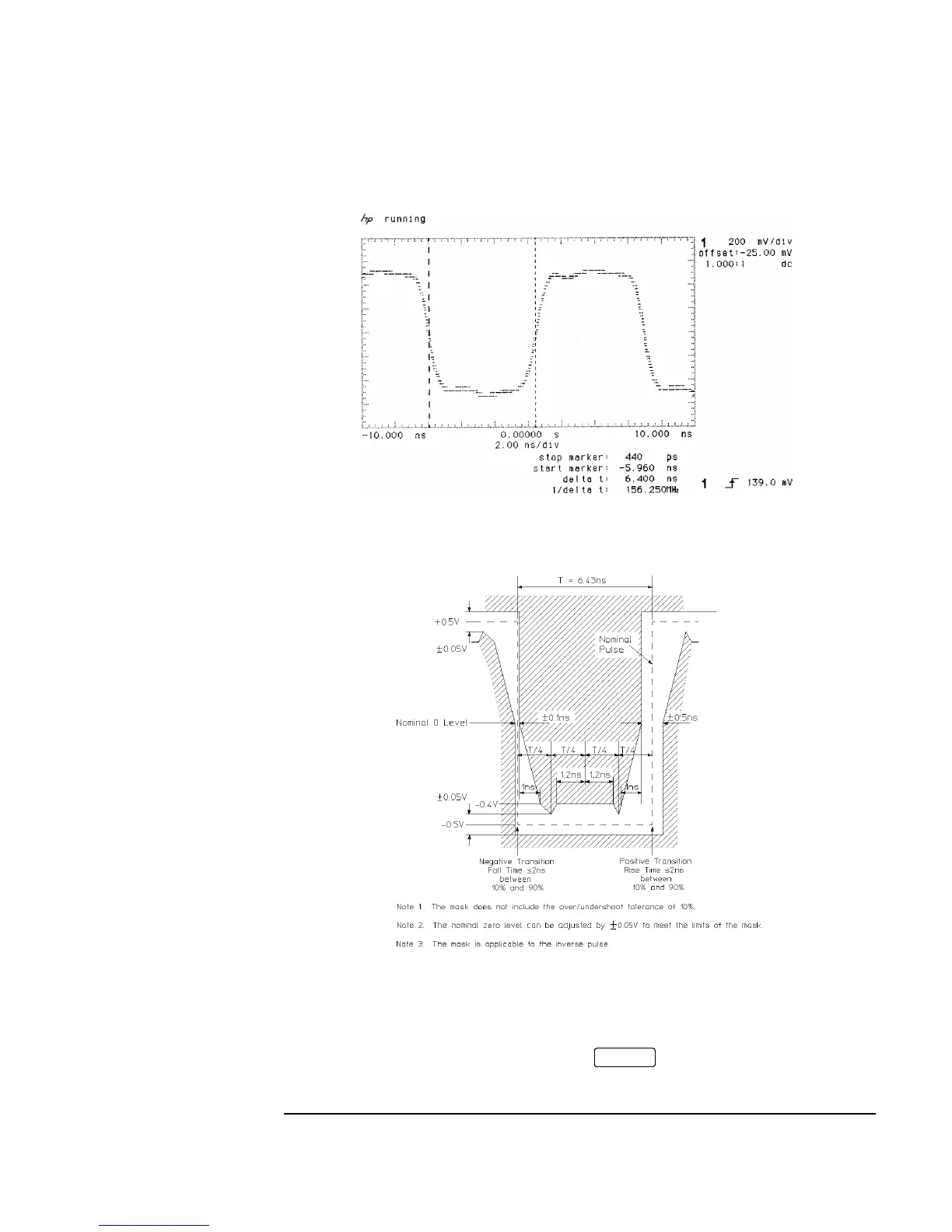

STS-3 Transmitter Output Waveshape (Option 120)
Figure 3-59 STS-3 All Ones Pattern
Figure 3-60 STS-3 All Ones Mask
CMI All Zeros Waveshape
7. Select PATTERN [ALL ZEROS] on the DEBUG FUNCTION display.
