Installing the console switch
11

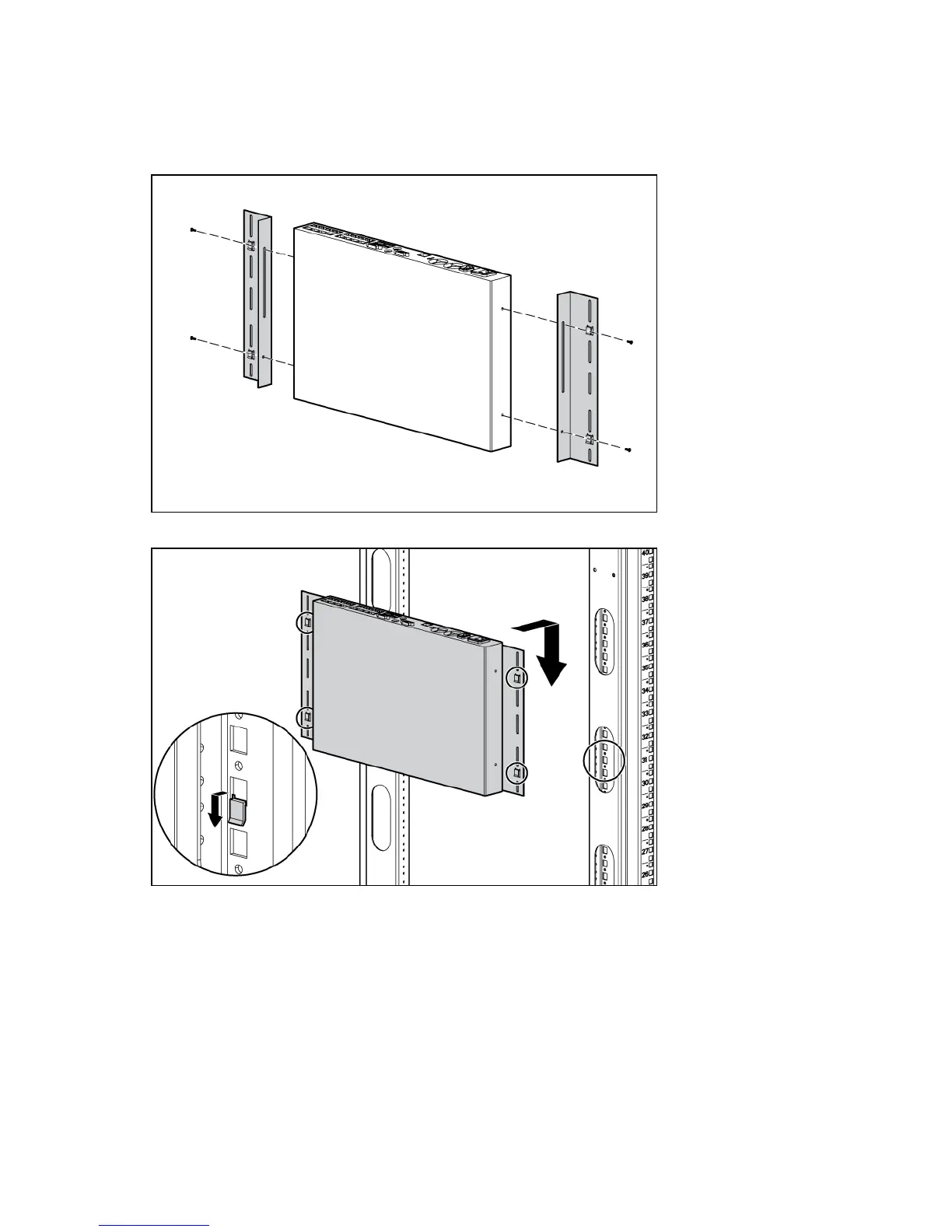

Performing a side-mount type A installation
1.
Remove the four screws, two on ea
ch side, from the console switch.
2.
Attach the side-mounting brackets to the console
switch using th
e four screws that you remov
ed.
3.
Slide the side-mounting bracket tabs into th
e U locations on each side of the rack.
10
12
