Installing the console switch 12
4.

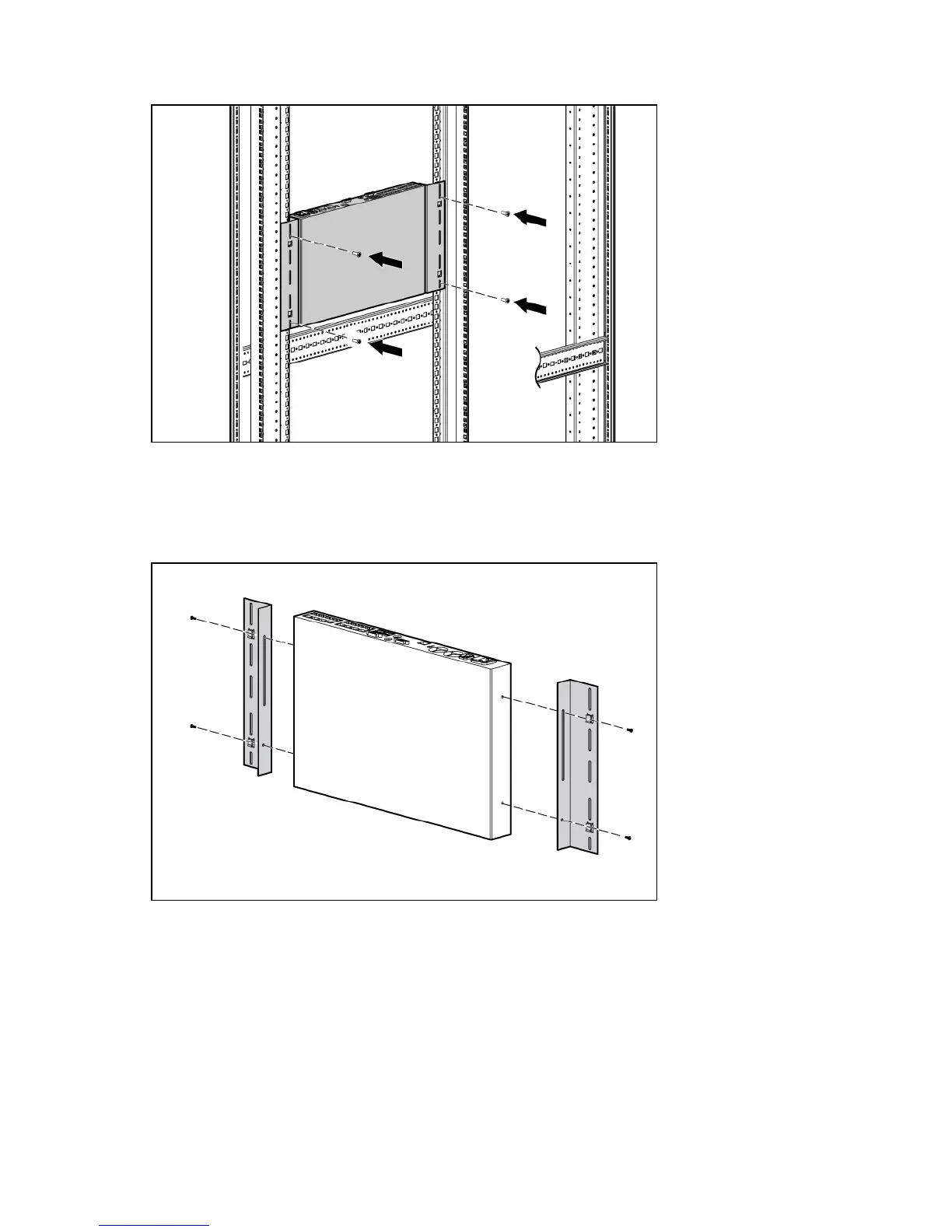

Secure the console switch to the rails using four self-tapping screws, two on each side.
Performing a side-mount type B installation
1. Remove the four screws, two on each side, from the console switch.
2. Attach the side-mounting brackets to the console switch using the four screws that you removed.
