Local port operation 37
3.

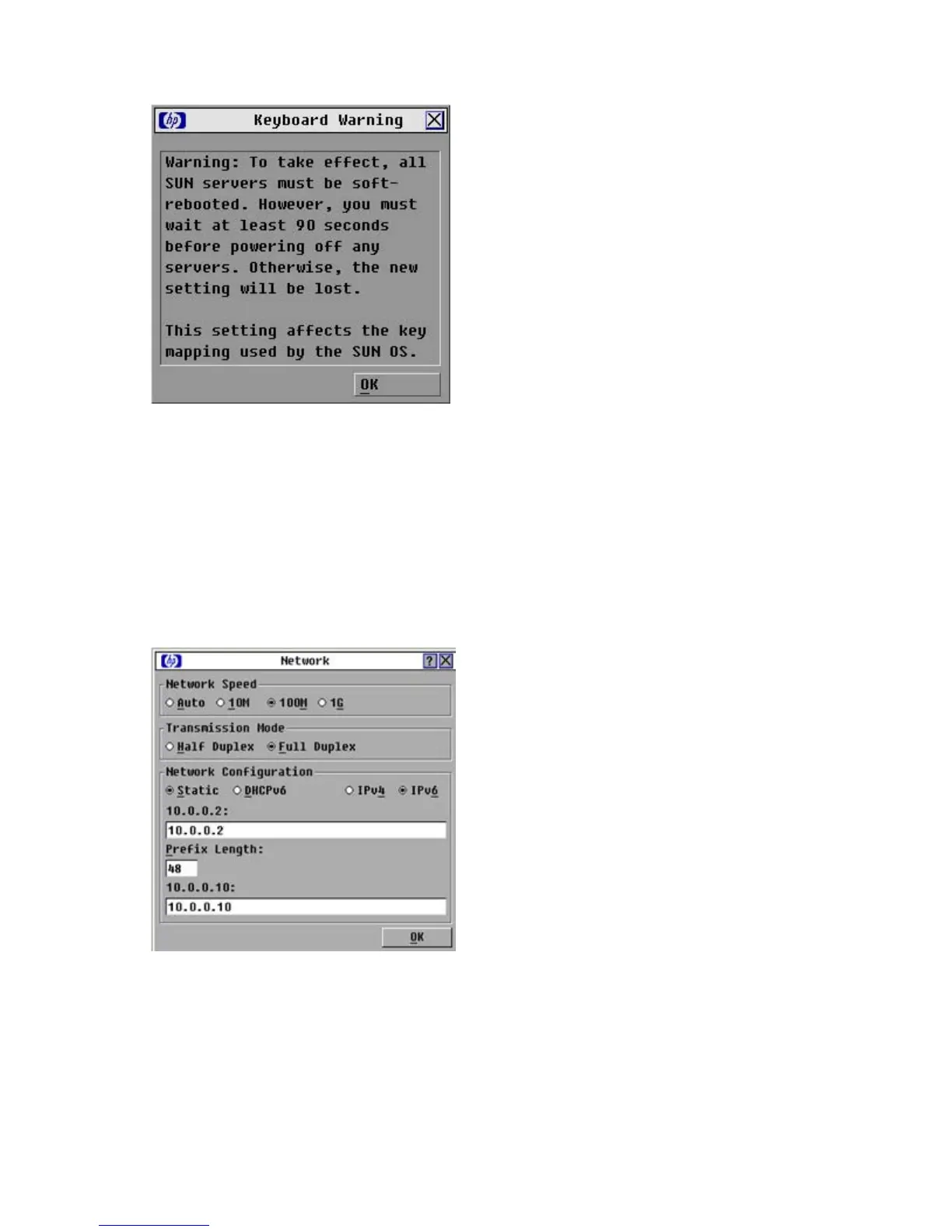

Click OK. A Keyboard Warning appears.
4. Click OK.
Changing network configurations
You can change the network speed and configuration through the Network dialog box.
The console switch system uses IP addresses to uniquely identify the console switches and computers
running the HP IP Console Viewer. HP recommends that IP addresses be reserved for each unit and that
they remain static while the console switches are connected to the network.
From the Main dialog box ("Accessing the Main dialog box" on page 28), click Setup>Network. The
Network dialog box appears. Configure your network settings.
Setting local console switch security
The OSD enables you to set security on the local port consoles. You can establish a Screen Saver mode
that is engaged after the console switch remains unused for a user-definable time delay. When the screen
saver is engaged, the console switch remains locked until any key is pressed or the mouse is moved.
