Local port operation 35
Assigning device types
The console switch automatically discovers cascaded console switches attached to your unit, but you must
specify the number of ports on the cascade console switches through the Devices dialog box.

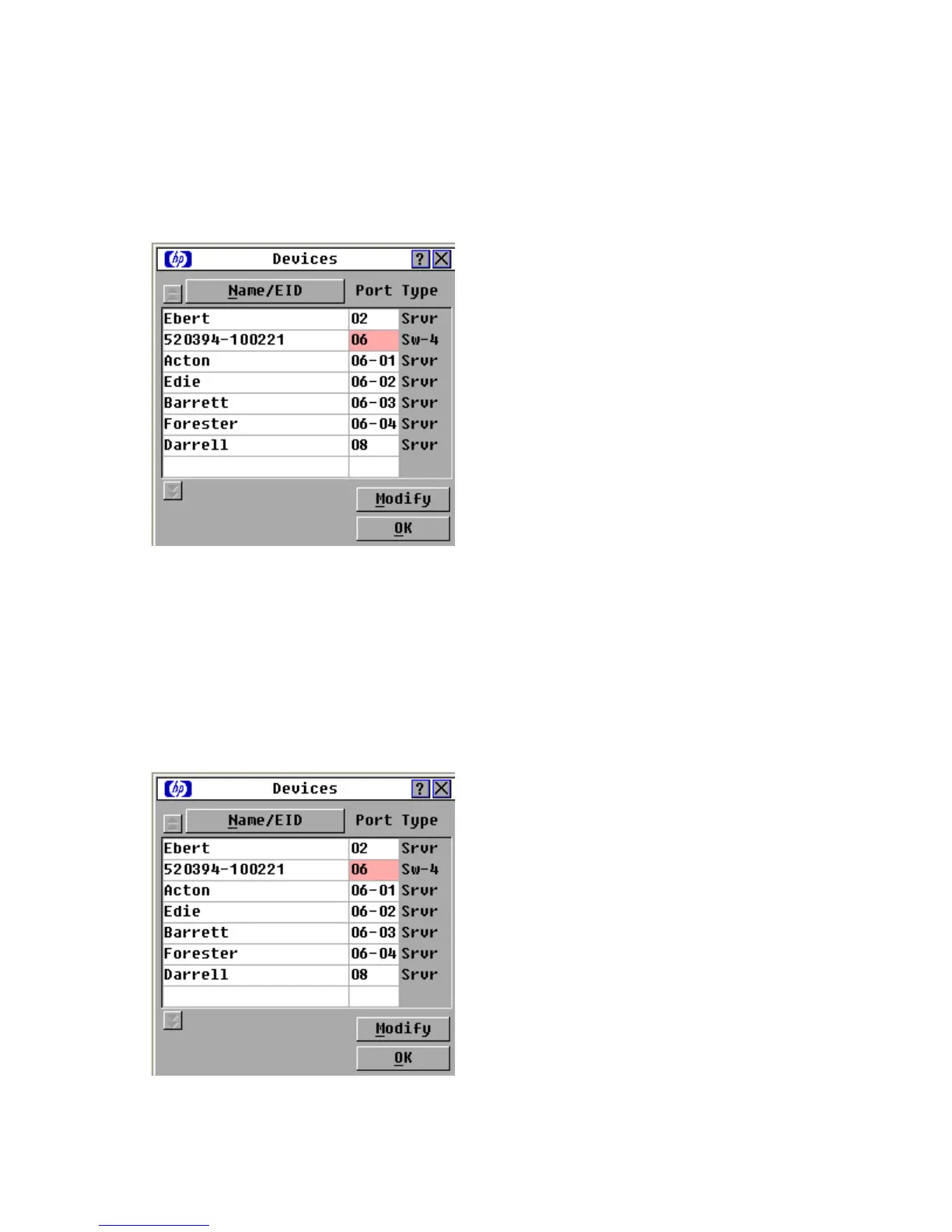

To access the Devices dialog box, from the Main dialog box ("Accessing the Main dialog box" on page
28), click Setup>Devices. The Devices dialog box appears. The Modify button is available only if a
configurable console switch is selected.
When the console switch discovers a cascaded console switch, the port numbers shown in the Port
column change automatically to accommodate each server shown under that console switch. For
example, if the console switch is connected to port 02, the switch port is listed as 02, and each server
shown under it is numbered sequentially 02-01, 02-02, and so on.
However, when the console switch discovers a cascaded Compaq Server Console Switch, you must select
the number of ports on the Compaq Server Console Switch through the Device Modify dialog box.
Modifying device types
1. From the Devices dialog box, select the Port number.
