Local port operation 53
3.

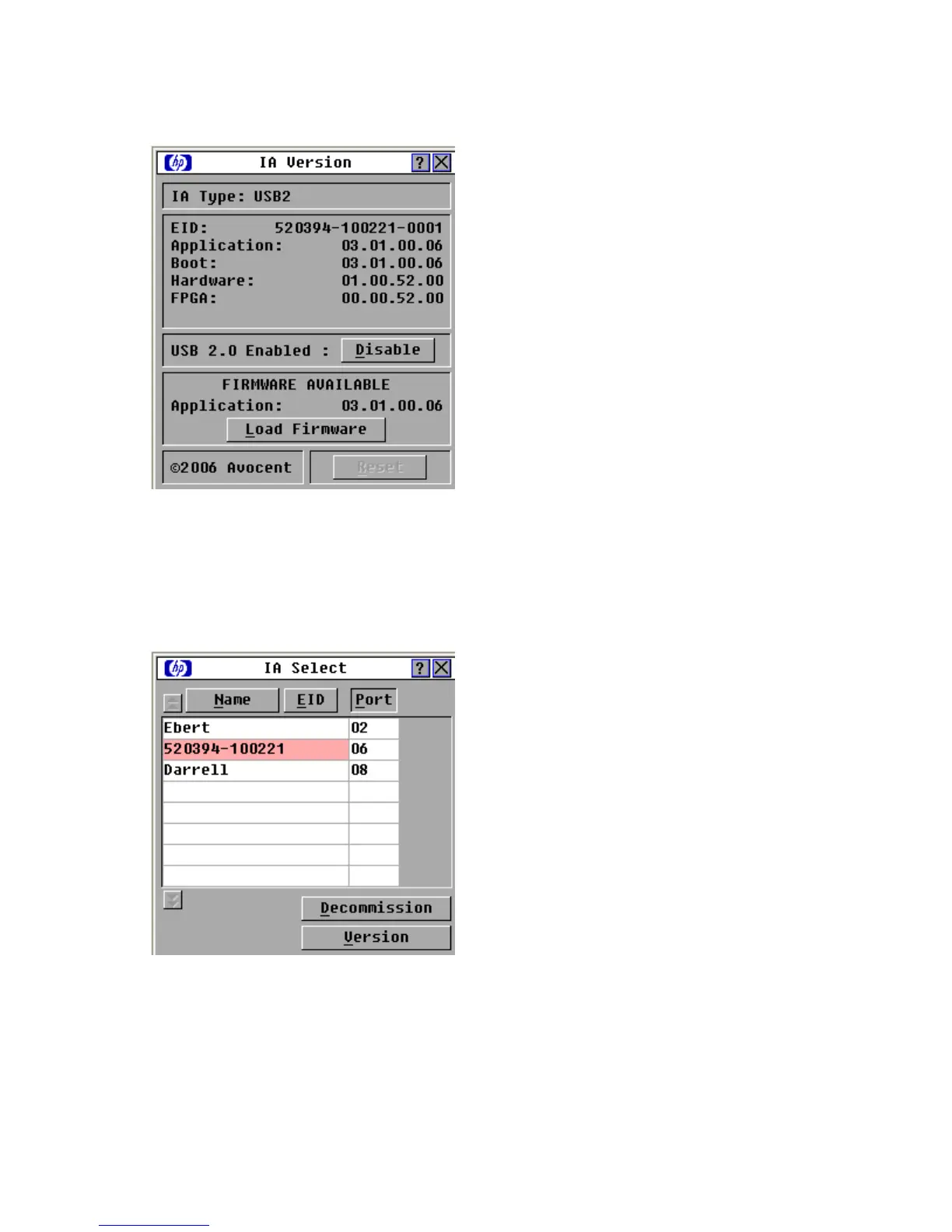

To view the selected interface adapter, click Version. The IA Version dialog box appears. The USB
2.0 Enable and USB 2.0 Disable buttons are only available on interface adapters with Virtual
Media.
4. Click X to exit.
Decommissioning an interface adapter
You can reset individual interface adapters to factory defaults by using the following procedure:
1. From the Main dialog box ("Accessing the Main dialog box" on page 28), click Commands>IA
Select. The IA Select dialog box appears.
2. Select the individual interface adapter you want to decommission.
3. Click Decommission. The associated server names, number of cascade ports, country code and
keyboard and mouse settings are set back to the factory defaults.
Displaying configuration information
The Config dialog box enables you to view the console switch configurations.
