HP 409054-003 - Performing a Cantilever-Mount Type a Installation

Installing the console switch 15
4.

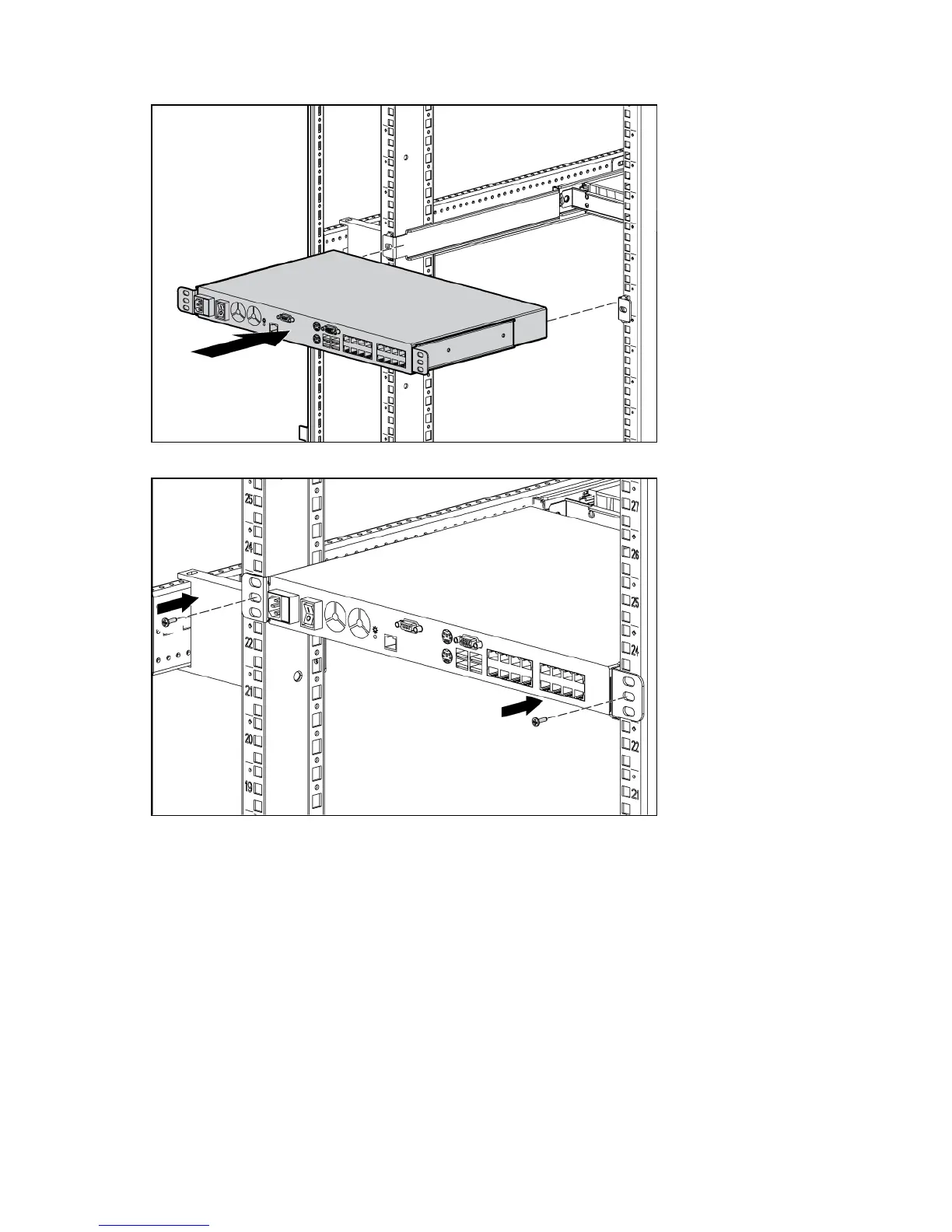

Slide the console switch behind the rear of the 1U product.
5. Secure the console switch to the rails using two M-6 screws, one on each side.
Performing a cantilever-mount type A installation
1. Remove the four screws, two on each side, from the console switch.
