Local port operation 46
3.
Click OK to save settings, or click Clear to remove all servers from the scan list.
Removing servers from the scan list

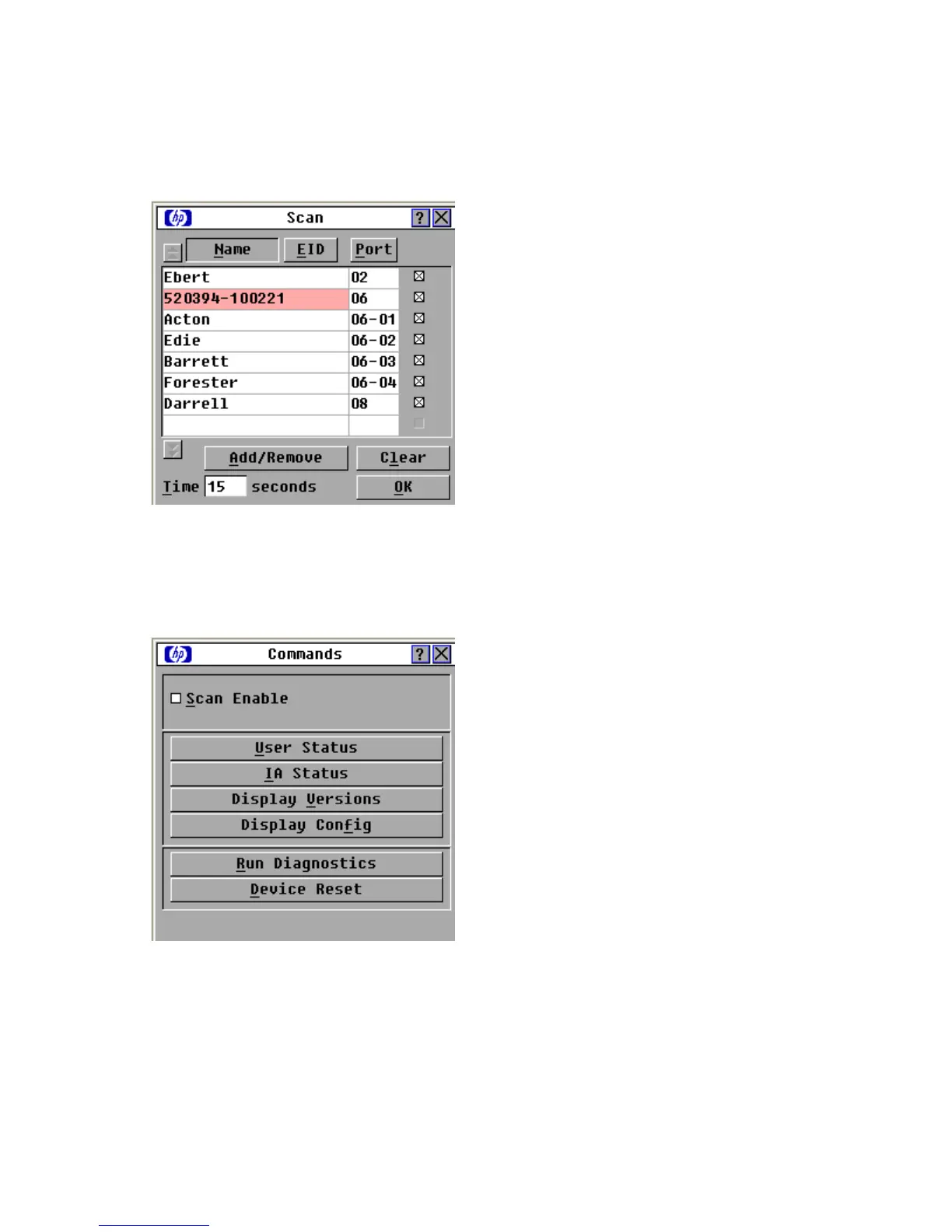

1. From the Scan dialog box ("Setting up a scan pattern" on page 44), click the server to be removed,
double-click a server name or port, or click Clear to remove all servers from the scan list.
2. Click OK to save settings.
Activating Scan mode
1. From the Commands dialog box ("Managing server tasks using the OSD" on page 48), select Scan
Enable.
2. Click X to close the Commands dialog box. The scan begins as soon as you click the Scan button in
the Setup dialog box ("Managing routine tasks for servers" on page 31).
Deactivating Scan mode
If the OSD is open, select a server.
-or-

HP 409054-003 Specifications

General

Brand	HP
Model	409054-003
Category	Switch
Language	English
