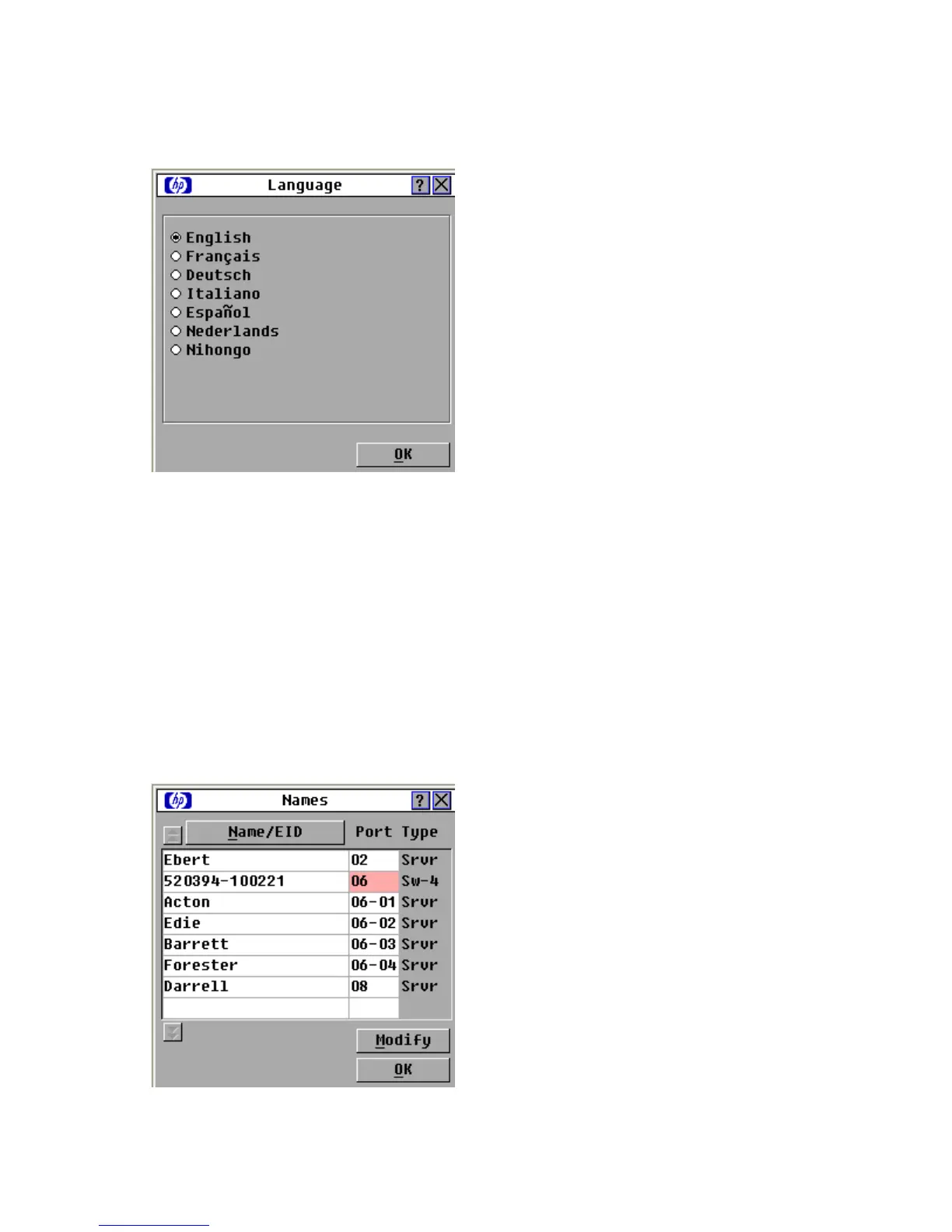

Local port operation 43
Changing the OSD language
1. From the Main dialog box ("Accessing the Main dialog box" on page 28), click Setup>Language.
The Language dialog box appears.
2. Select an OSD language.
3. Click OK to save settings.
Assigning server and serial device names
Use the Names dialog box to identify individual servers or serial devices by name rather than by port
number. The Name/EID list is always sorted by port order, and the names and EID numbers are stored in
the interface adapter ("Installing the interface adapter" on page 21). If you move the interface adapter or
server to another console switch port, the console switch still recognizes the names and configurations.
To access the Names dialog box, from the Main dialog box ("Accessing the Main dialog box" on page
28), click Setup>Names. The Names dialog box appears.
If the Name/EID list has changed since it last appeared, the mouse turns into an hourglass as the list is
automatically updated. No mouse or keyboard input is accepted until the list update is complete.
