Local port operation 55
Test Description
LAN Connection
(digital only)
Verifies the LAN connection is accessible and functional by verifying the link
controller is responsive and monitoring the network traffic.
• If the link controller is responsive, the test-passes indictor appears.
• If the link controller is non-responsive, the test-failed indictor appears.
• If the link controller is functional but no network traffic has been displayed.
The LAN icon is green for up to one minute after the network cable has been
disconnected.
On-line IAs Indicates the total number of currently connected and powered interface adapters.
Offline IAs Indicates the number of interface adapters that have been connected successfully in
the past and are powered down.
Suspect IAs Indicates the number of interface adapters that have been detected, but are either
unavailable for connection or have dropped packets during the ping tests.

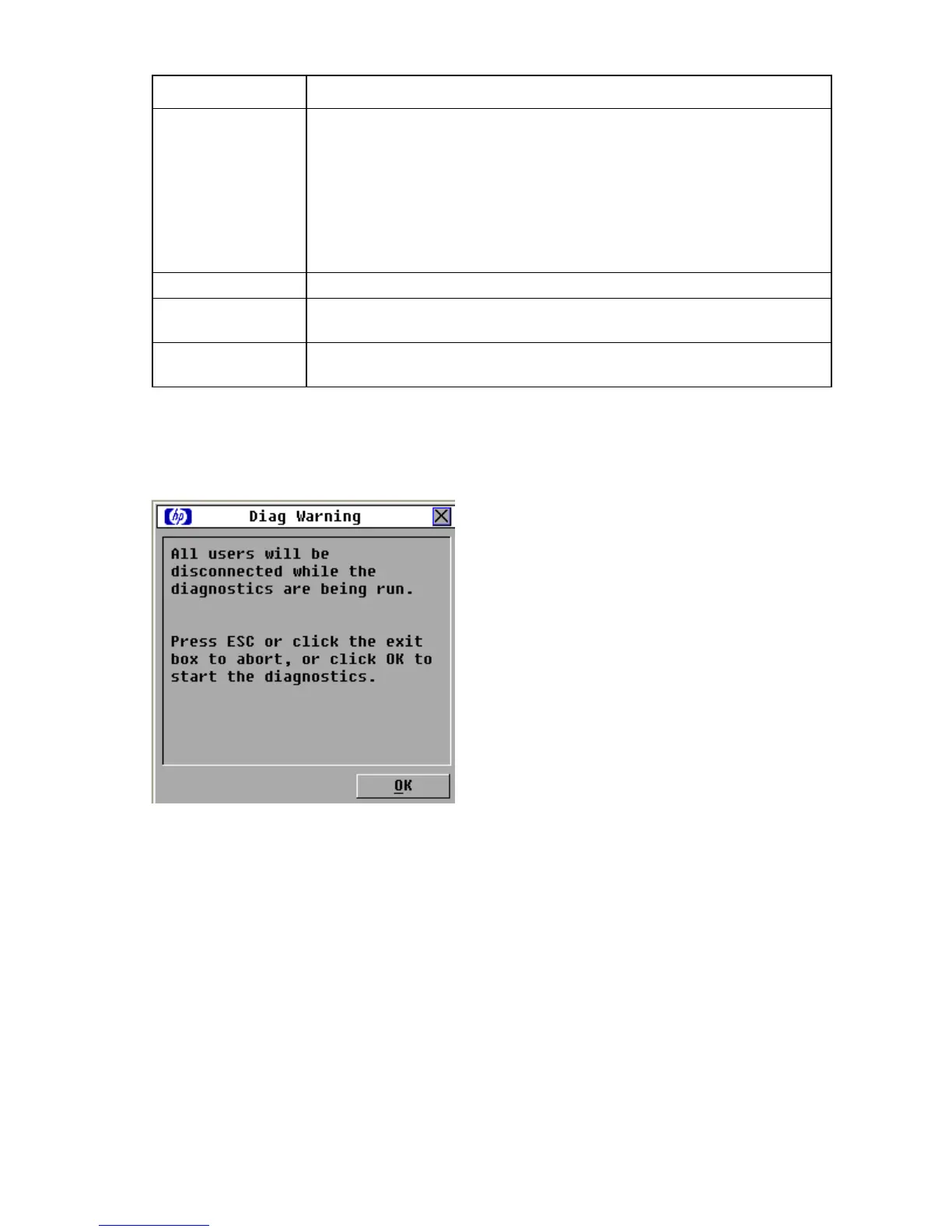

Activating Run Diagnostics
1. From the Main dialog box ("Accessing the Main dialog box" on page 28), click Commands>Run
Diagnostics. A warning message appears, indicating that all users will be disconnected.
2. Perform one of the following actions:
o Click OK to begin. All users are disconnected, and the Diagnostics dialog box appears.
o Click X or press the Esc key to exit the dialog box without running a diagnostic test.
