24
3. If the PC is off, turn on the PC. Launch the terminal emulation program and configure the
communication properties on the PC.
Figure 4 through Figure 6 show the confi
guration procedure on Windows XP HyperTerminal.
Make sure the port settings are the same as listed in Table 12.
NOTE:
On Windows Server 2003, add the HyperTerminal program first, and then log in to and manage the
device as described in this document. On Windows Server 2008, Windows 7, Windows Vista, or some
other operating system, obtain a third-party terminal control program first, and then follow the user
uide
or online help to log in to the device.

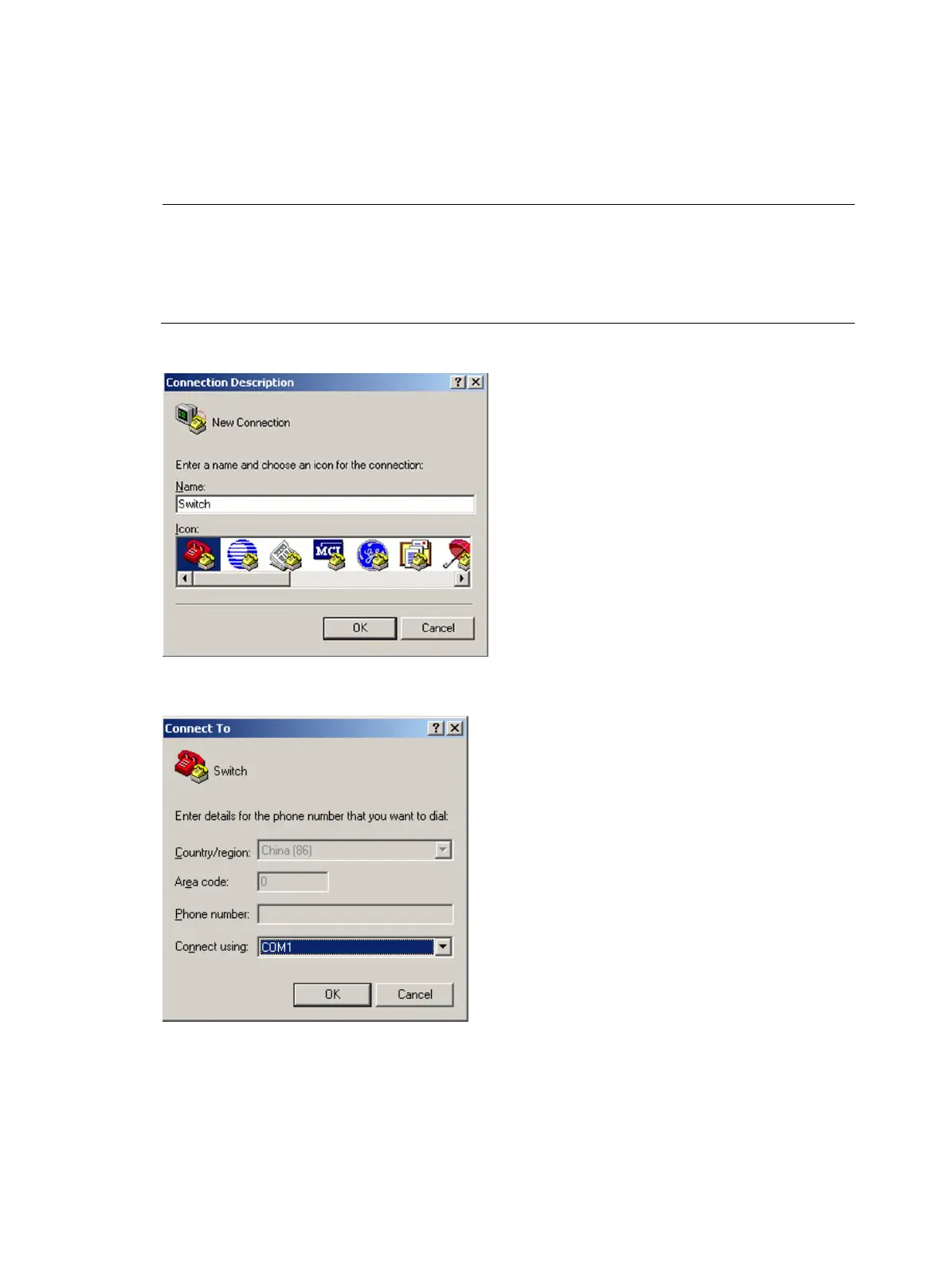

Figure 4 Connection description
Figure 5 Specifying the serial port used to establish the connection
