HP 7475a Service Manual

Model 7475A
BS 1363A
N
c:::::i
E
D
AS C112
CEE 7-Vll
NEMA 5-15P
NEMA 6-15P
SEV 1011
DHCK-107
HP Part Number 8120-1351; 250 V, 13 A, 1 q, plug
rating. For use in United Kingdom, Cyprus, Nigeria,
Zimbabwe, Singapore.
HP Part Number 8120-1369; 250 V, 10 A, 1 q, plug
rating. For use in Australia, New Zealand.
HP Part Number 8120-1689; 250 V, 10/16 A, 1 q, plug
rating. For use in East and West Europe, Saudi
Arabia, Egypt, South Africa, India.
HP Part Number 8120-1378; 125 V, 15 A, 1 q, plug
rating. For use in Canada, Japan, Mexico, Philippines,
Taiwan, UL approved in United States.
HP Part Number 8120-0698; 250 V, 15 A, 1 q, plug
rating. For use in Canada, UL approved in United
States.
HP Part Number 8120-2104; 250 V, 10 A, 1 q, plug
rating. For use in Switzerland.
HP Part Number 8120-2956; _250 V, 10 A, 1 q, plug
rating. For use in Denmark.
NOTE: All plugs are viewed from connector end.
L =Line or Active Conductor (also called "live" or "hot")
N =Neutral or Identified Conductor
E =Earth or Safety Ground

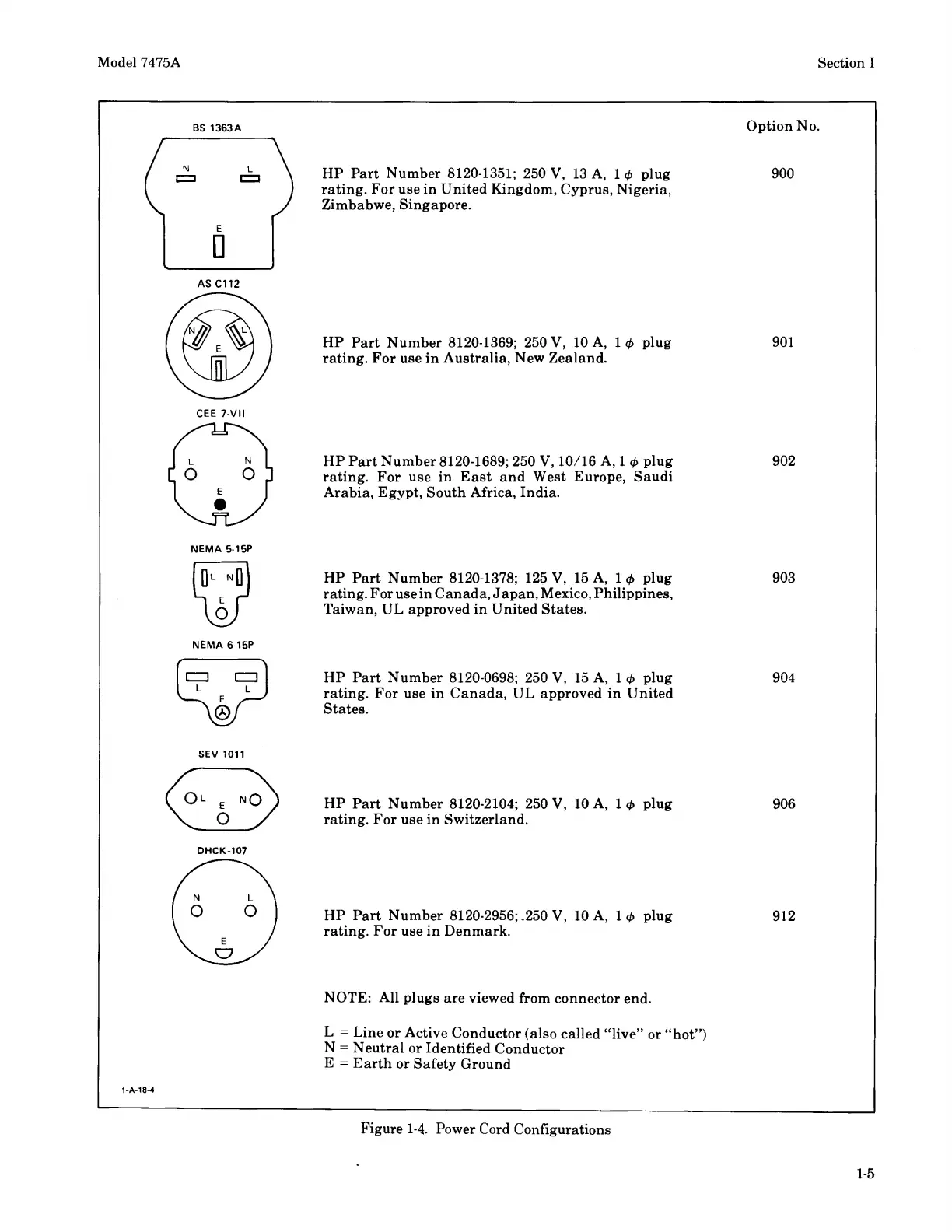

Figure 1-4. Power Cord Configurations
Section I
Option No_
900
901
902
903
904
906
912
1-5

HP 7475a Specifications
