Section IV
Model 7475A
9
7
7475-A-57-1

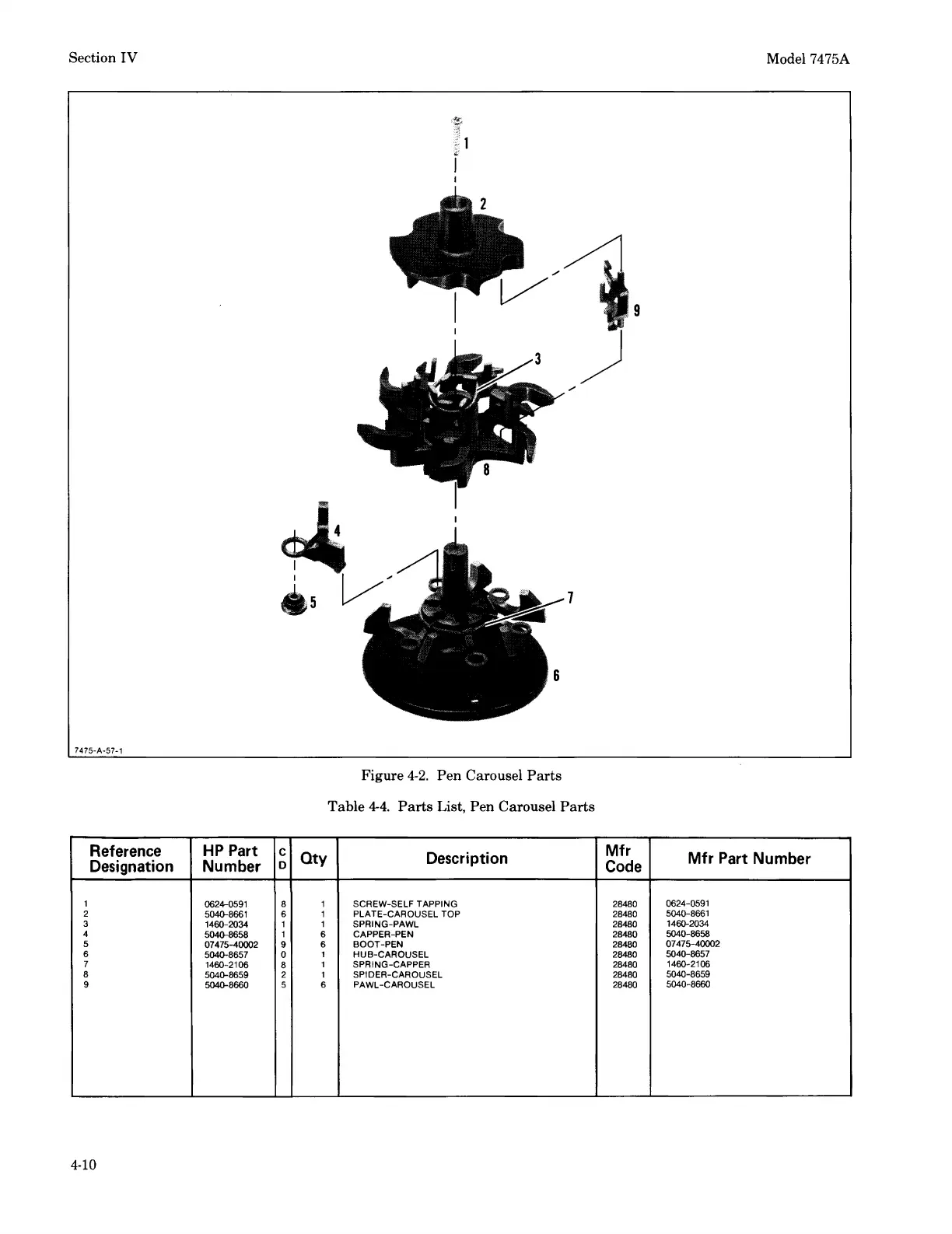

Figure
4-2.
Pen
Carousel
Parts
Table
4-4.
Parts
List, Pen Carousel
Parts
Reference
HP
Part
c
Oty
Description
Mfr
Mfr
Part
Number
Designation
Number
D
Code
1
0624-0591 8 1
SCREW-SELF TAPPING
28480
0624-0591
2
5040-8661
6 1
PLATE-CAROUSEL TOP
28480
5040-8661
3
1460-2034 1 1
SPRING-PAWL
28480
1460-2034
4
5040-8658
1 6 CAPPER-PEN 28480
5040-8658
5
07 475-40002
9
6
BOOT-PEN
28480
07 475-40002
6
5040-8657 o
1
HUB-CAROUSEL 28480
5040-8657
7
1460-2106
8
1
SPRING-CAPPER
28480
1460-2106
8
5040-8659
2 1 SPIDER-CAROUSEL
28480
5040-8659
9
5040-8660
5 6 PAWL-CAROUSEL
28480
5040-8660
4-10
