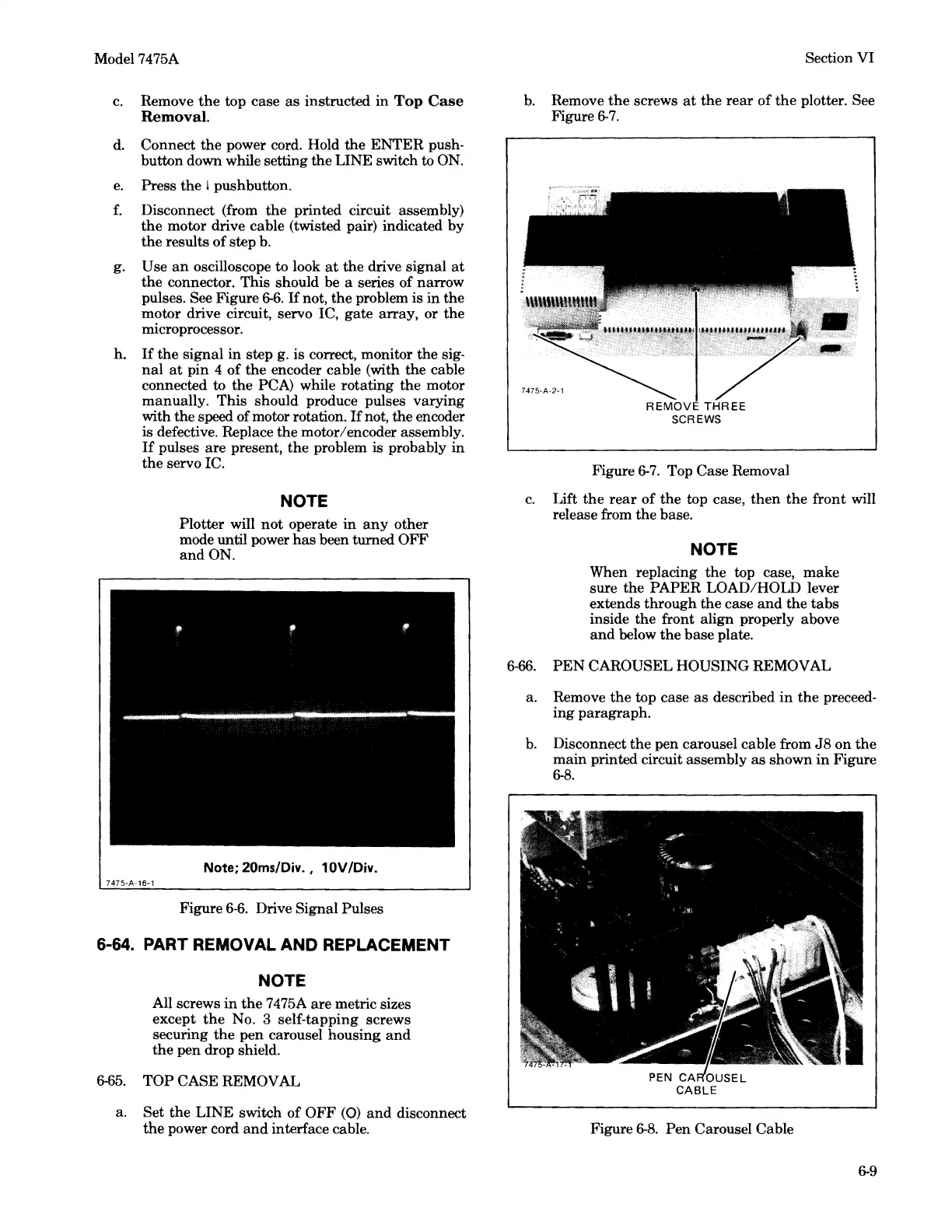

Model 7475A
c. Remove
the
top
case
as
instructed
in
Top
Case
Removal.
d.
Connect
the
power cord. Hold
the
ENTER
push-
button
down while setting
the
LINE
switch to ON.
e.
Press
the
I pushbutton.
f.
Disconnect (from
the
printed
circuit assembly)
the
motor drive cable (twisted pair) indicated
by
the
results
of
step
b.
g.
Use
an
oscilloscope
to
look
at
the
drive
signal
at
the
connector.
This
should
be a series
of
narrow
pulses. See
Figure
6-6.
If
not,
the
problem
is
in
the
motor
drive circuit, servo IC,
gate
array,
or
the
microprocessor.
h.
If
the
signal
in
step
g.
is
correct, monitor
the
sig-
nal
at
pin
4
of
the
encoder cable (with
the
cable
connected
to
the
PCA) while
rotating
the
motor
manually.
This
should
produce pulses
varying
with
the
speed of motor rotation.
If
not,
the
encoder
is
defective. Replace
the
motor/encoder assembly.
If
pulses
are
present,
the
problem
is
probably
in
the
servo IC.
7475-A-16-1
NOTE
Plotter
will
not
operate
in
any
other
mode until power
has
been turned
OFF
and
ON.
Note; 20ms/Div., 10V/Div.
Figure
6-6.
Drive
Signal
Pulses
6-64. PART REMOVAL AND REPLACEMENT
NOTE
All screws
in
the
7475A
are
metric sizes
except
the
No. 3
self-tapping
screws
securing
the
pen
carousel
housing
and
the
pen
drop shield.
6-65.
TOP
CASE REMOVAL
a.
Set
the
LINE
switch
of
OFF
(0)
and
disconnect
the
power cord
and
interface cable.
Section
VI
b. Remove
the
screws
at
the
rear
of
the
plotter. See
Figure
6-7.
REMOVE
THREE
SCREWS
Figure
6-7.
Top
Case
Removal
c.
Lift
the
rear
of
the
top case,
then
the
front
will
release from
the
base.
NOTE
When replacing
the
top case,
make
sure
the
PAPER
LOAD/HOLD
lever
extends
through
the
case
and
the
tabs
inside
the
front
align
properly above
and
below
the
base
plate.
6-66.
PEN
CAROUSEL
HOUSING
REMOVAL
a. Remove
the
top
case
as
described
in
the
preceed-
ing
paragraph.
b. Disconnect
the
pen
carousel
cable
from
JB
on
the
main
printed
circuit assembly
as
shown
in
Figure
6-8.
Figure
6-8.
Pen
Carousel Cable
6-9
