Model 7475A
6-77.
PINCH
ROLLER
MECHANISM
REMOVAL
6-78.
To remove
the
pinch
roller lever
and
bar
or
the
right
or left
pinch
roller arm, proceed
as
follows:
a. Remove
the
top case. Refer to
Top
Case
Removal.
b. To remove
the
right
pinch
roller arm,
the
pen
drop shield
must
be removed. See Figure
6-11.
c.
Remove
the
chassis
assembly
as
instructed
in
Printed
Circuit
Assembly
Removal,
steps
b.
throughf.
d.
Place
the
chassis
assembly upside down on
the
work surface. See Figure
6-19.
e.
Remove
the
pinch roller spring.
f.
To remove
the
pinch roller lever
and
bar, move
the
lever
in
an
upward position
and
merely slip
out
of
the
chassis.
g.
Slide
the
pinch roller
arm
from
its
pivot
and
remove from
the
chassis.
h. Replace all
parts
in
reverse order.
6-79.
PAPER
DRIVE
SHAFT
AND COUPLER
REMOVAL
a. Remove
the
chassis
assembly
as
instructed
in
Printed
Circuit
Assembly
Removal,
steps a.
throughf.
b. Remove
the
right
and
left
pinch
roller springs
and
pinch roller arms.
Section
VI
c.
Remove
both
bearing clamps
by
pressing down
and
inward
on
the
clamps. See Figure
6-19.
d.
Remove
paper
drive
shaft
toward
the
left.
Do
not
attempt
to
replace
grit
wheels
or bearings individually. The grit wheels
must
be press fitted
at
the
factory to
the
proper position.
e.
Loosen
the
coupler clamping screw
and
remove
the
coupler from
the
shaft.
f.
When replacing
the
coupler
and
drive
shaft,
place
the
coupler on
the
end
of
the
shaft,
leaving
the
clamping screw loose enough to allow
the
coupler
to slide.
g.
Place
the
drive
shaft
in
position,
making
sure
that
the
rubber
0-rings
on
the
drive
shaft
coupler
and
the
motor
shaft
coupler fit inside
the
grooves
of
the
coupler ring. Replace
the
bearing
clamps.
See Figure
6-12.
h. Place
the
chassis assembly
right
side up.
NOTE
Step i. assumes
that
the
paper
drive
motor
is
in
position
and
its
clamp
tightened securely.
If
not, refer to
Paper
Drive
Motor
Assembly.
BEARING
CLAMPS
RIGHT
PINCH
ROLLER
ARM
7475-A-27·1
RIGHT
PINCH
ROLLER
SPRING
PAPER
DRIVE
SHAFT
PINCH
ROLLER
LEVER
AND
BAR

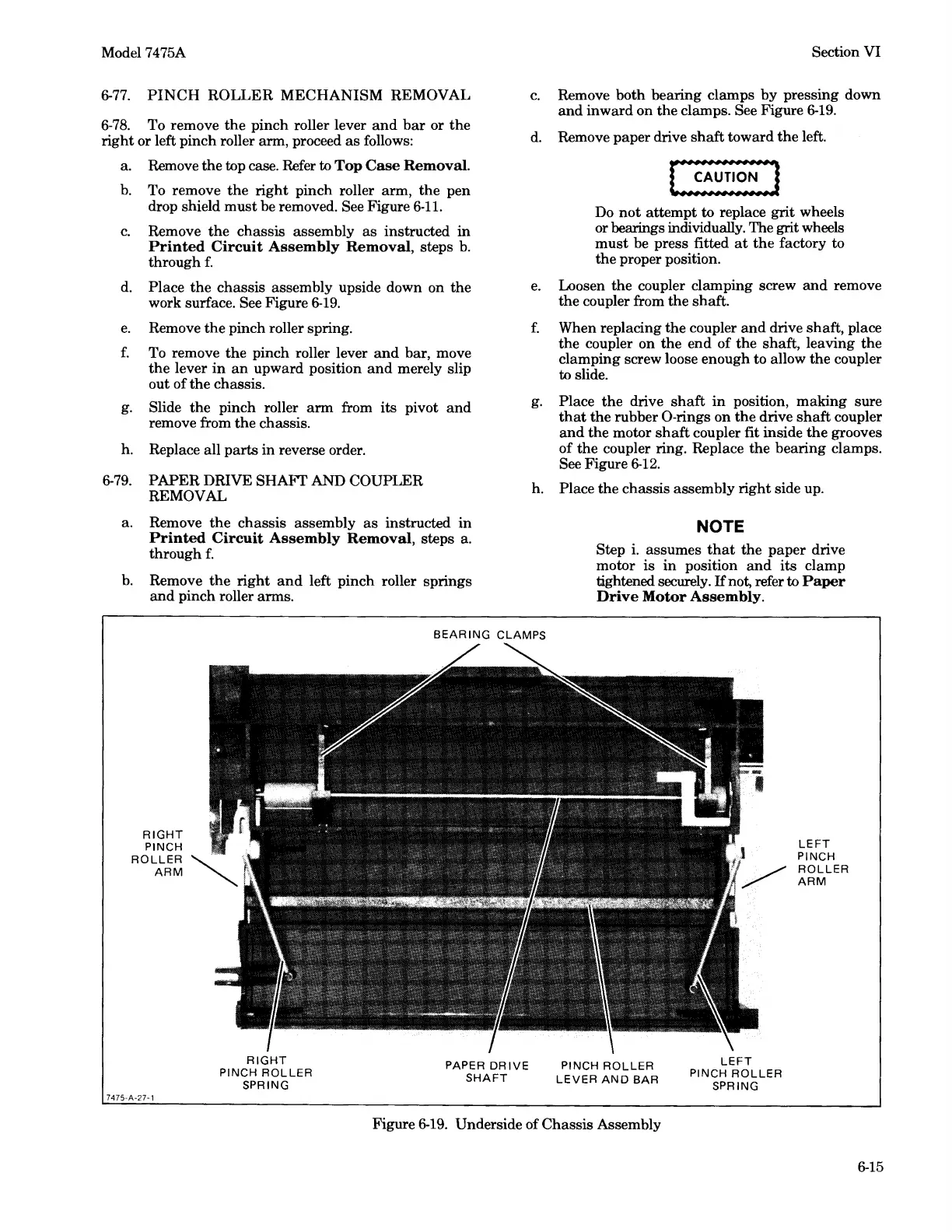

Figure
6-19.
Underside of Chassis Assembly
LEFT
PINCH
ROLLER
SPRING
LEFT
PINCH
ROLLER
ARM
6-15
