HP 7475a Service Manual

Section II
Model 7475A

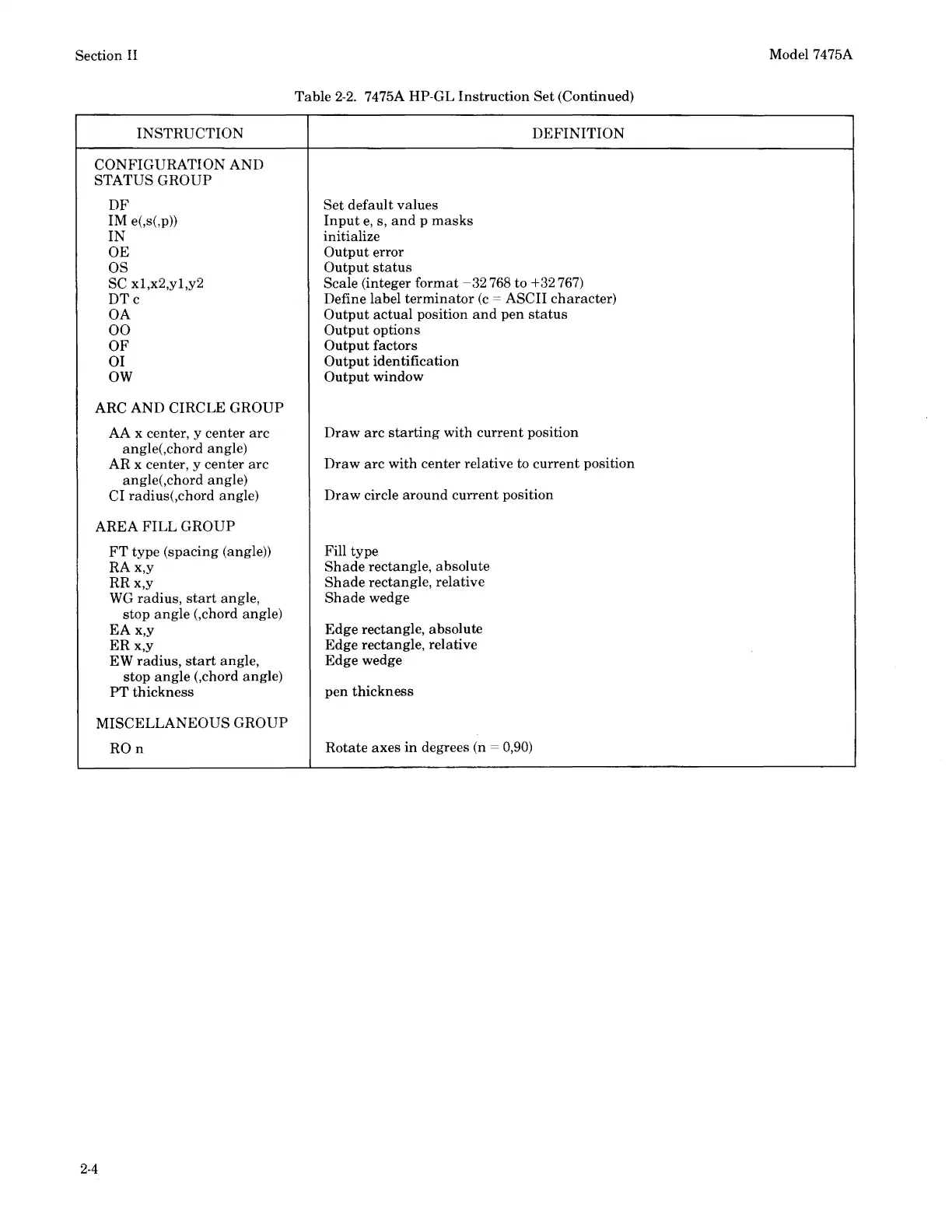

Table 2-2. 7475A HP-GL Instruction Set (Continued)
INSTRUCTION DEFINITION
CONFIGURATION AND
STATUS GROUP
DF
Set default values
IM e(,s(,p)) Input e, s, and p masks
IN
initialize
OE
Output error
OS
Output status
SC xl,x2,yl,y2
Scale (integer format -32 768 to +32 767)
DTc
Define label terminator (c =ASCII character)
OA
Output actual position and pen status
00
Output options
OF
Output factors
OI
Output identification
ow
Output window
ARC AND CIRCLE GROUP
AA x center, y center arc
Draw arc starting with current position
angle(,chord angle)
AR x center, y center arc
Draw arc with center relative to current position
angle(,chord angle)
CI radius(,chord angle)
Draw circle around current position
AREA FILL GROUP
FT type (spacing (angle)) Fill type
RAx,y
Shade rectangle, absolute
RRx,y
Shade rectangle, relative
WG radius, start angle,
Shade wedge
stop angle (,chord angle)
EAx,y
Edge rectangle, absolut.e
ERx,y
Edge rectangle, relative
EW radius, start angle,
Edge wedge
stop angle (,chord angle)
PT thickness
pen thickness
MISCELLANEOUS GROUP
ROn
Rotate axes in degrees (n = 0,90)
2-4
