Printing Using an HP-IB Interface
Equipment
w
HP 8590 Series spectrum analyzer equipped with Option 041.
n HP 10833A (or equivalent) HP-IB cable.
w
Printer with HP-IB Interface, choose one of the following:
q HP 2225A
ThinkJet
q HP 3630A
PaintJet
q HP 500 Series* DeskJet (with HP-IB to Centronics converter)
t
q HP
310*
Portable DeskJet (with HP-IB to Centronics converter)
1
q HP LaserJet (with HP-IB to Centronics converter) t
q MX-80 Epson (with HP-IB to Centronics converter)
t
q LQ-570 Epson (with HP-IB to Centronics converter)
t
* Some models support color printing.
t
Part number HP
ITEL-45CHVU,
US and Canada, and Part number HP
ITEL-45CHVE,
international.
Interconnection and Printing Instructions
1. Turn off the printer and the spectrum analyzer.
2. Connect the printer to the spectrum analyzer using the HP-IB cable.
3. The printer usually resides at device address 1. See figure Figure 6-3 for a typical HP-IB
printer switch setup.
ADDRESS=1

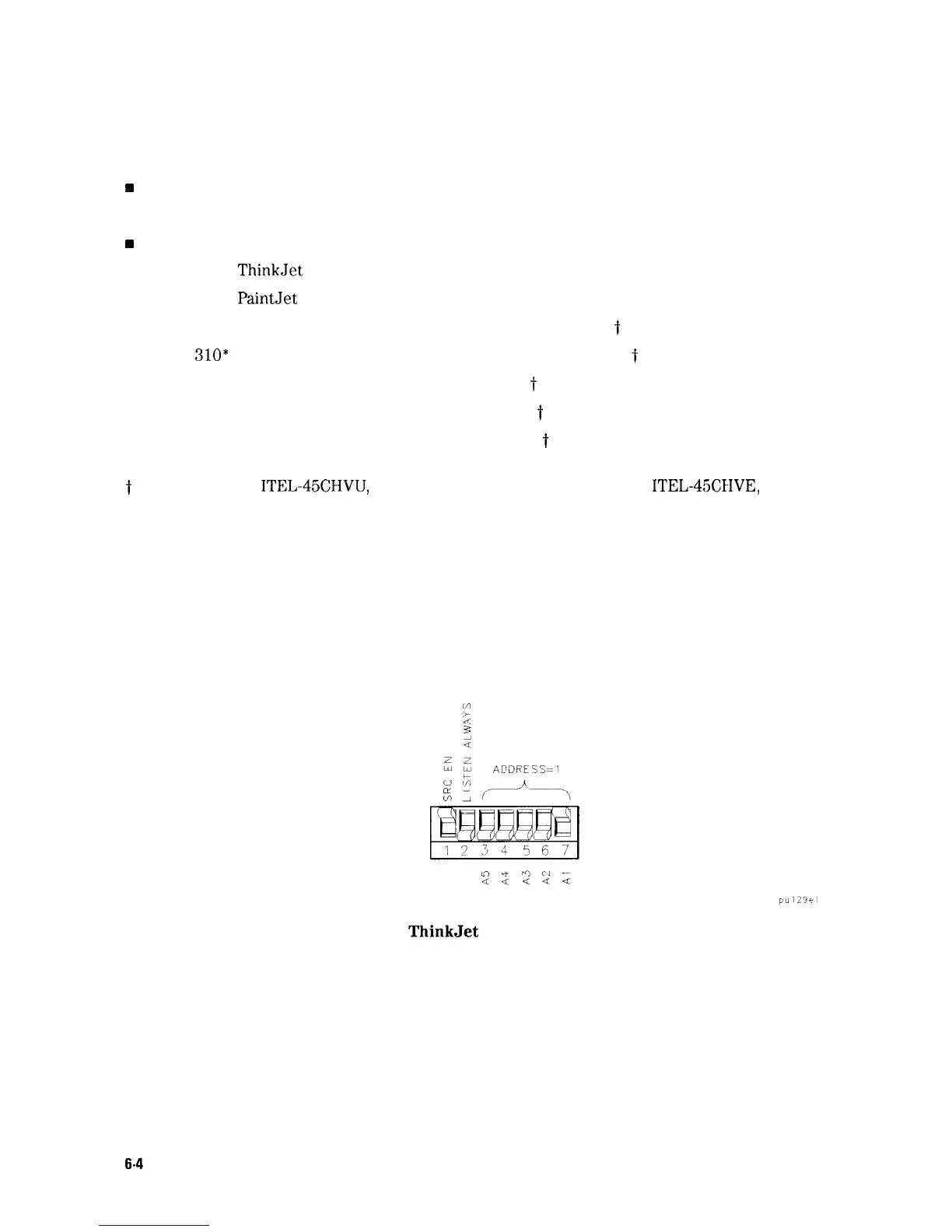

Figure 6-3.
ThinkJet
Printer Switch Settings
