To measure the other distortion product, press SPEAK SEARCH], NEXT PEAK . This places a
marker on the next highest peak, which, in this case, is the other source signal. To measure
the difference between this test tone and the second distortion product, press MARKER A
and use the knob to adjust the second marker to the peak of the second distortion product.
See Figure 3-25.
J@
MKR a I 025 MHz
REF 0 dBm
ATTEN 40 dB
-54.04 dB
PEAK
LOG
10
dB/
WA SE
SC FS
CORR
t-
L
CENTER 300.650 MHz
SPAN 5
000 MHZ
XRFS RW 7 kH7
“RW -4 kH7
SWP 1 7 SPr

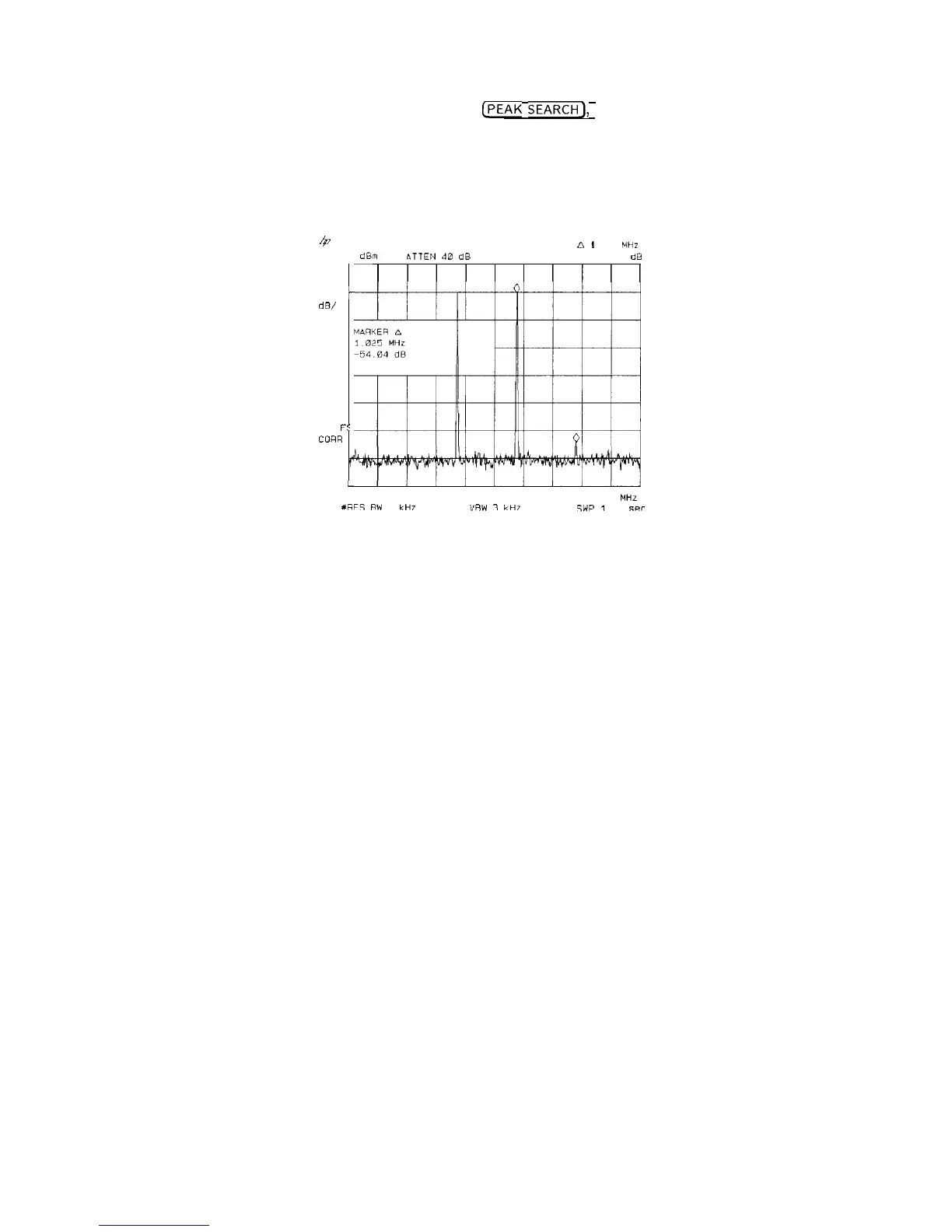

Figure 3-25. Measuring the Distortion Product
Making Basic Measurements 3-23
