The display will be compressed slightly when using the PAL or NTSC format for the MONITOR
OUTPUT, instead of the normal format. The PAL and NTSC formats have less vertical
resolution than the spectrum analyzer display. The top and bottom of the spectrum analyzer
display are compressed slightly so that all of the information can be fit into the size required by
the MONITOR OUTPUT.
able

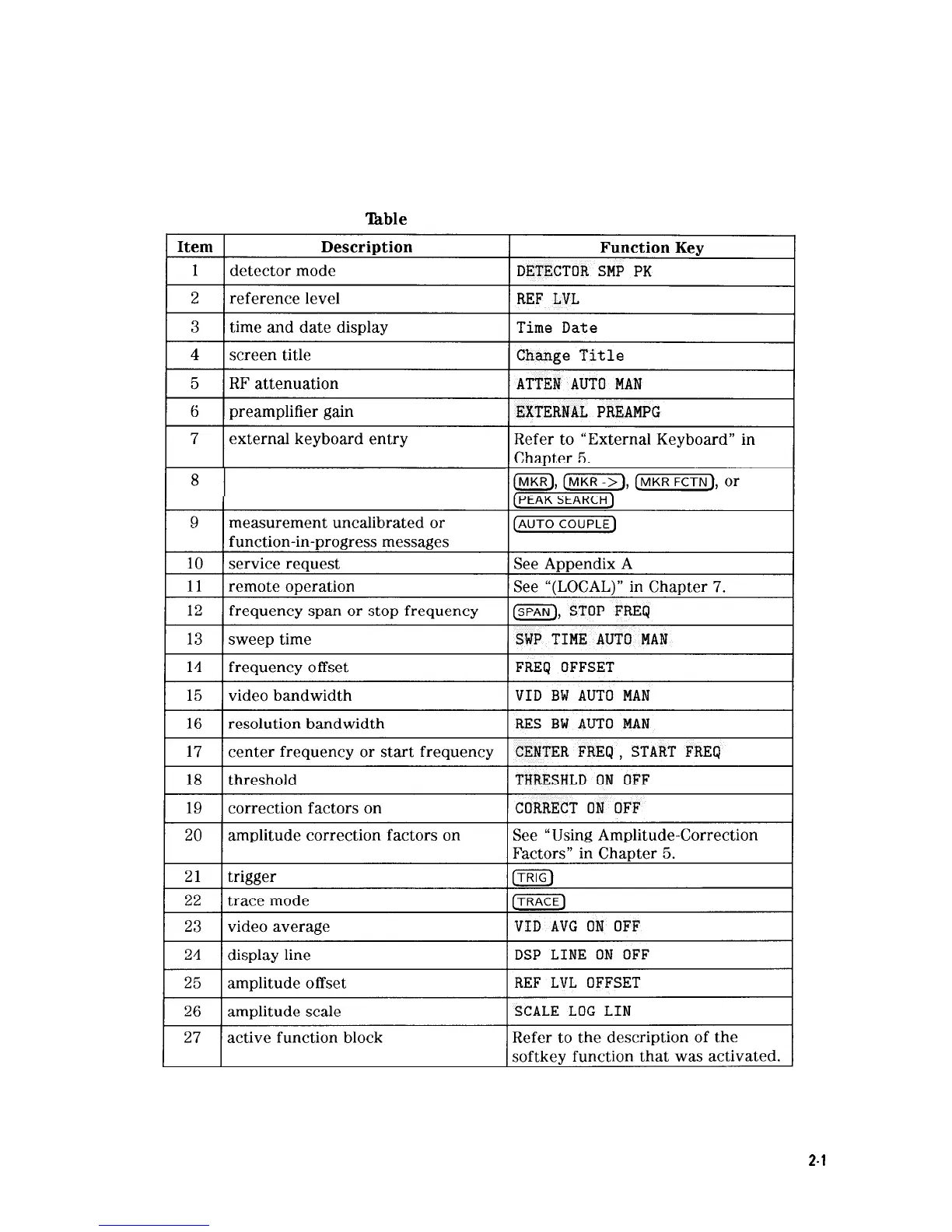

2-2. Screen Annotation
marker readout
Getting Started
2-l
