ES User’s Guide 4-9
Using Instrument Functions
Using Markers

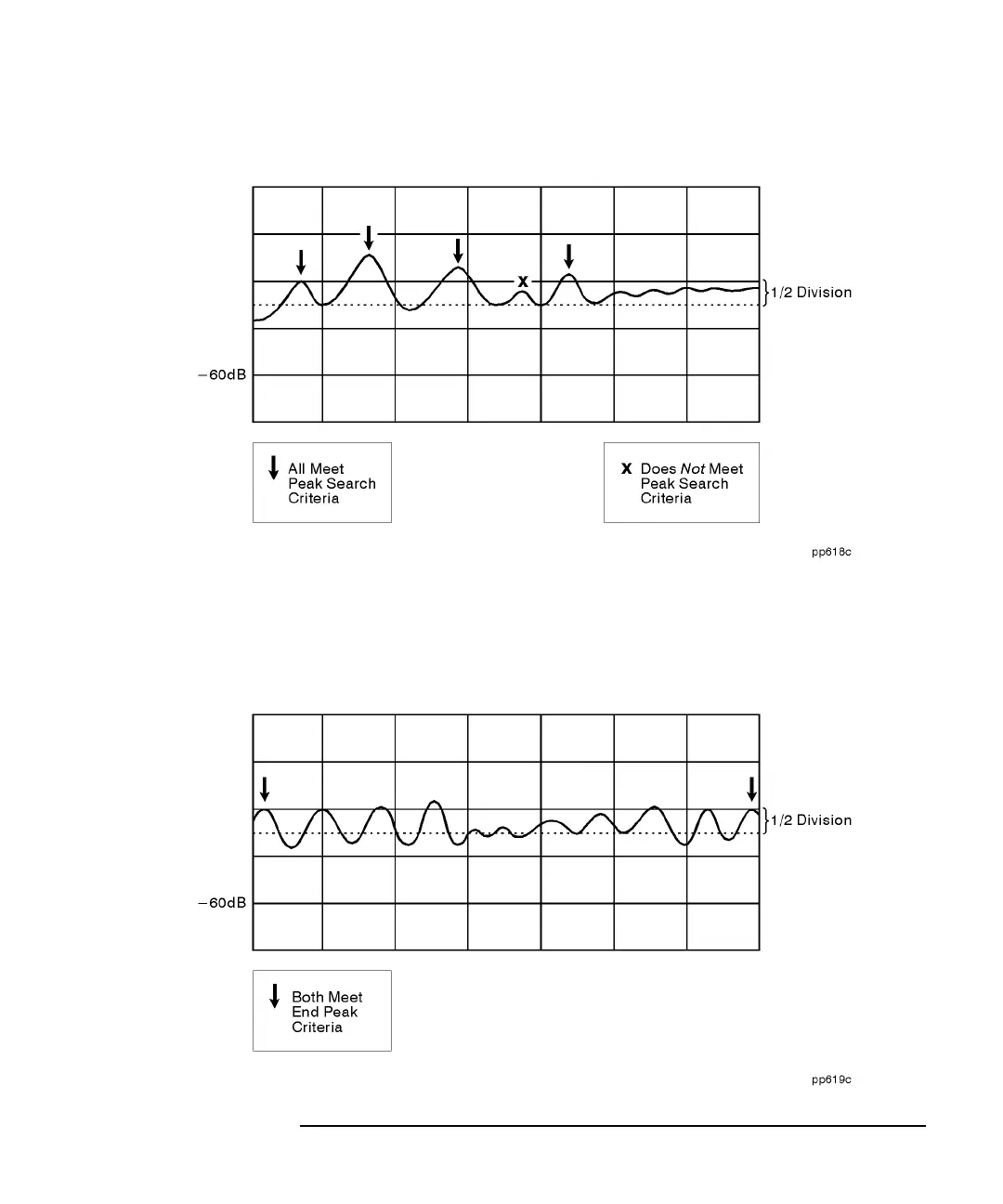

Figure 4-4 Peak and Minimum Search Criteria
When the maximum or minimum point is at or near either edge of the
display, the excursion requirement is satisfied by a half of a division
excursion on just one side of the maximum (or minimum). See Figure
4-5.
Figure 4-5 Peak and Minimum Search Criteria at Display Endpoints
