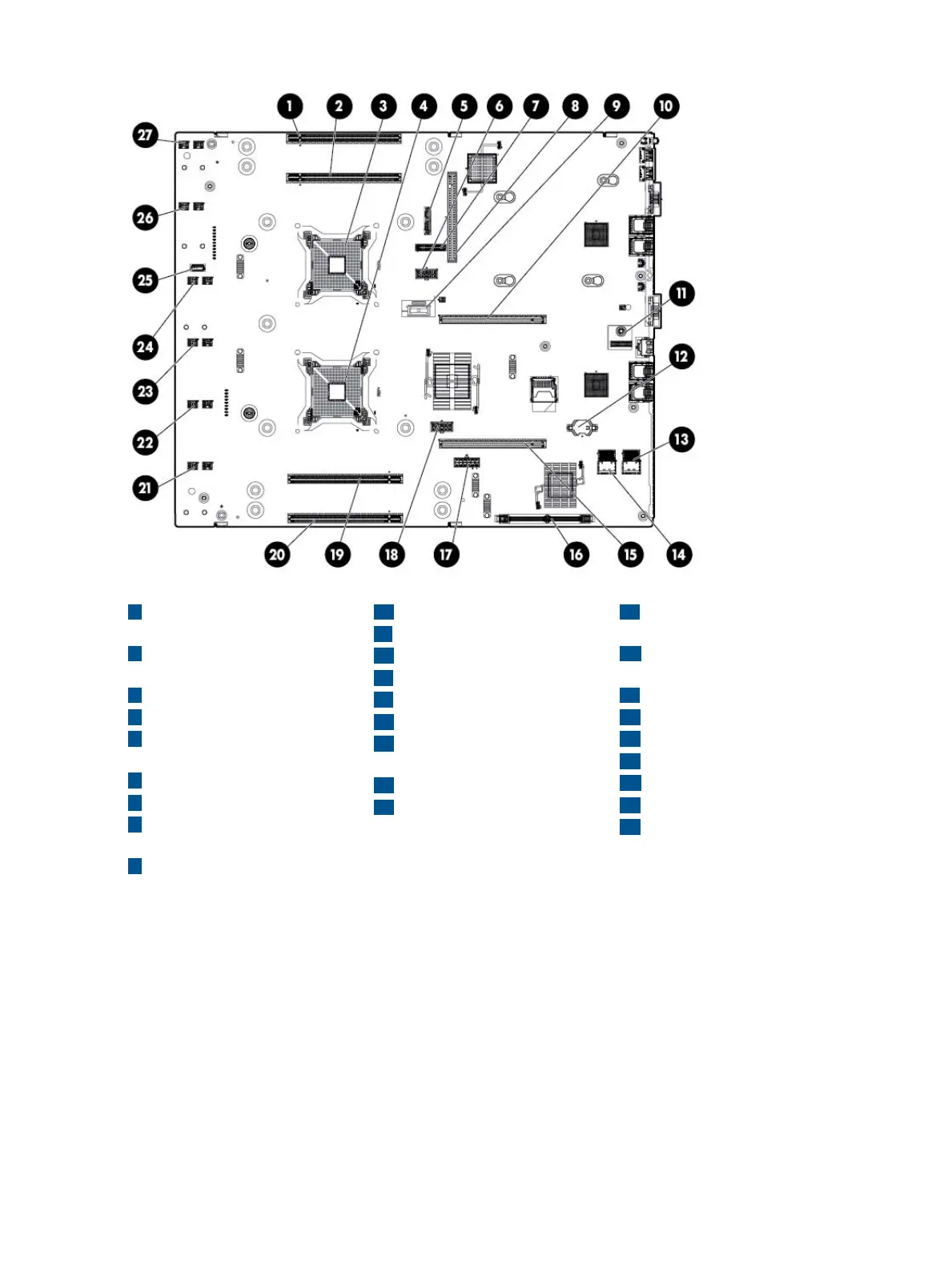

Figure 2 System board components
19
Memory expansion board
connector 3
10
Primary riser connector
1
Memory expansion board
connector 1
11
TPM connector
2 20
Memory expansion board
connector 2
Memory expansion board
connector 4
12
System battery
13
SAS B connector
3 21
Processor socket 0 Fan 6 connector
14
SAS A connector
4 22
Processor socket 1 Fan 5 connector
15
Secondary riser connector
5 23
SATA optical drive
connector
Fan 4 connector
16
SAS cache module
connector
24
Fan 3 connector
6
CPU 0 power connector
25
Internal USB connector
17
SAS power connector
7
Front I/O connector
26
Fan 2 connector
18
CPU 1 power connector
8
Power supply backplane
connector
27
Fan 1 connector
9
Intrusion switch connector
10 Overview

HP Carrier-Grade rx2800 i2 Server DC Specifications

General

Form Factor	2U Rack
Product Type	Carrier-grade server
Memory Type	DDR3
Hard Drive Interface	SAS
Storage	Up to 8x 2.5-inch SAS HDDs/SSDs
Power Supply	Redundant Power Supplies
Operating System	HP-UX
Operating System Support	HP-UX
Processor	Intel Itanium Processor 9300 series
Memory	Up to 384 GB (24 DIMM slots)
