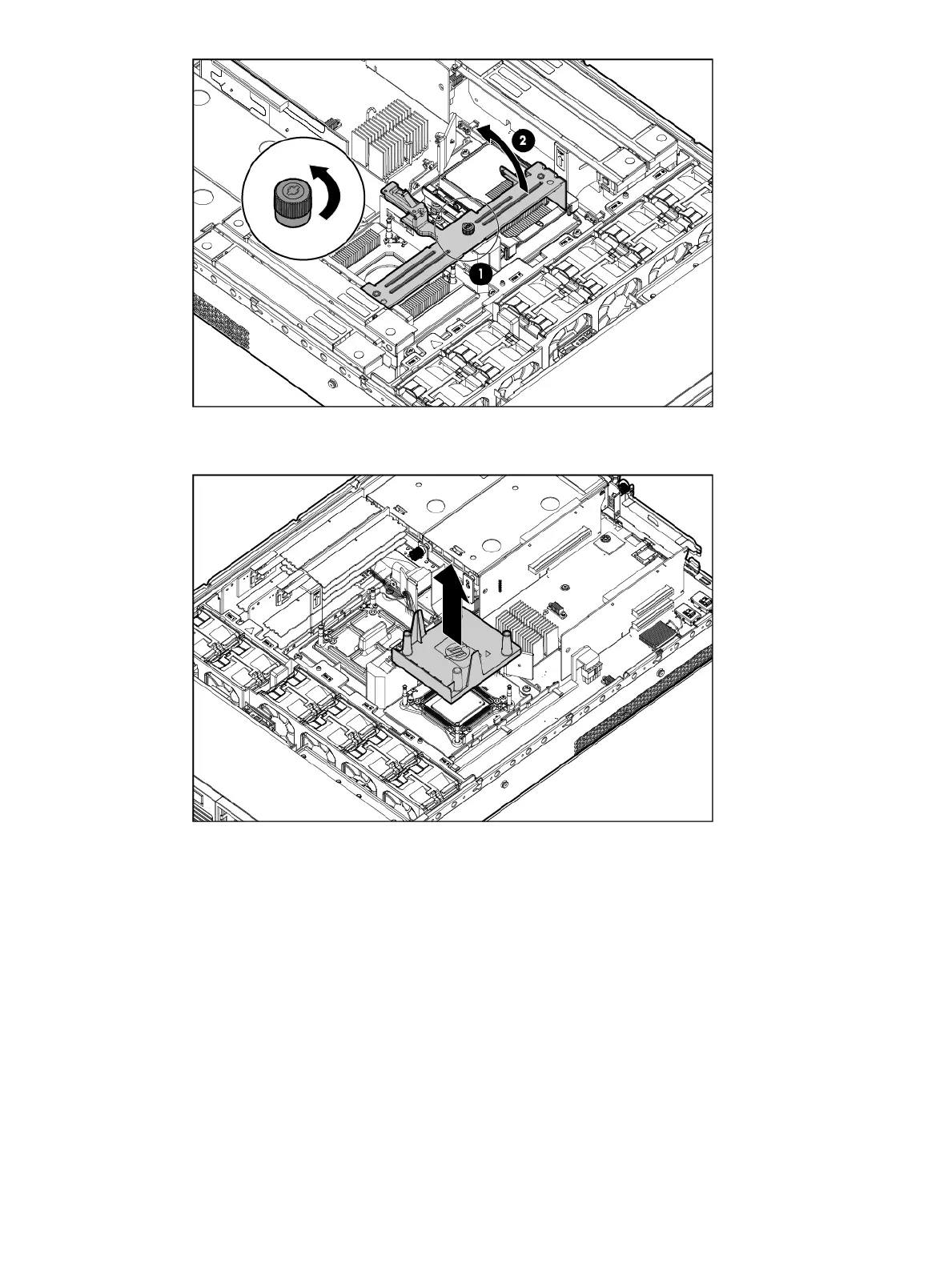

4. Pull the processor baffle straight up and out.

To replace the processor baffle:

1. Line the processor baffle up with 4 load posts on each corner of the socket.

2. Guide the processor baffle straight down into place.

Removing and replacing the processor baffle 109

Questions and Answers:

Need help?

Do you have a question about the HP Carrier-Grade rx2800 i2 Server DC and is the answer not in the manual?

HP Carrier-Grade rx2800 i2 Server DC Specifications

General

Form Factor	2U Rack
Product Type	Carrier-grade server
Memory Type	DDR3
Hard Drive Interface	SAS
Storage	Up to 8x 2.5-inch SAS HDDs/SSDs
Power Supply	Redundant Power Supplies
Operating System	HP-UX
Operating System Support	HP-UX
Processor	Intel Itanium Processor 9300 series
Memory	Up to 384 GB (24 DIMM slots)
