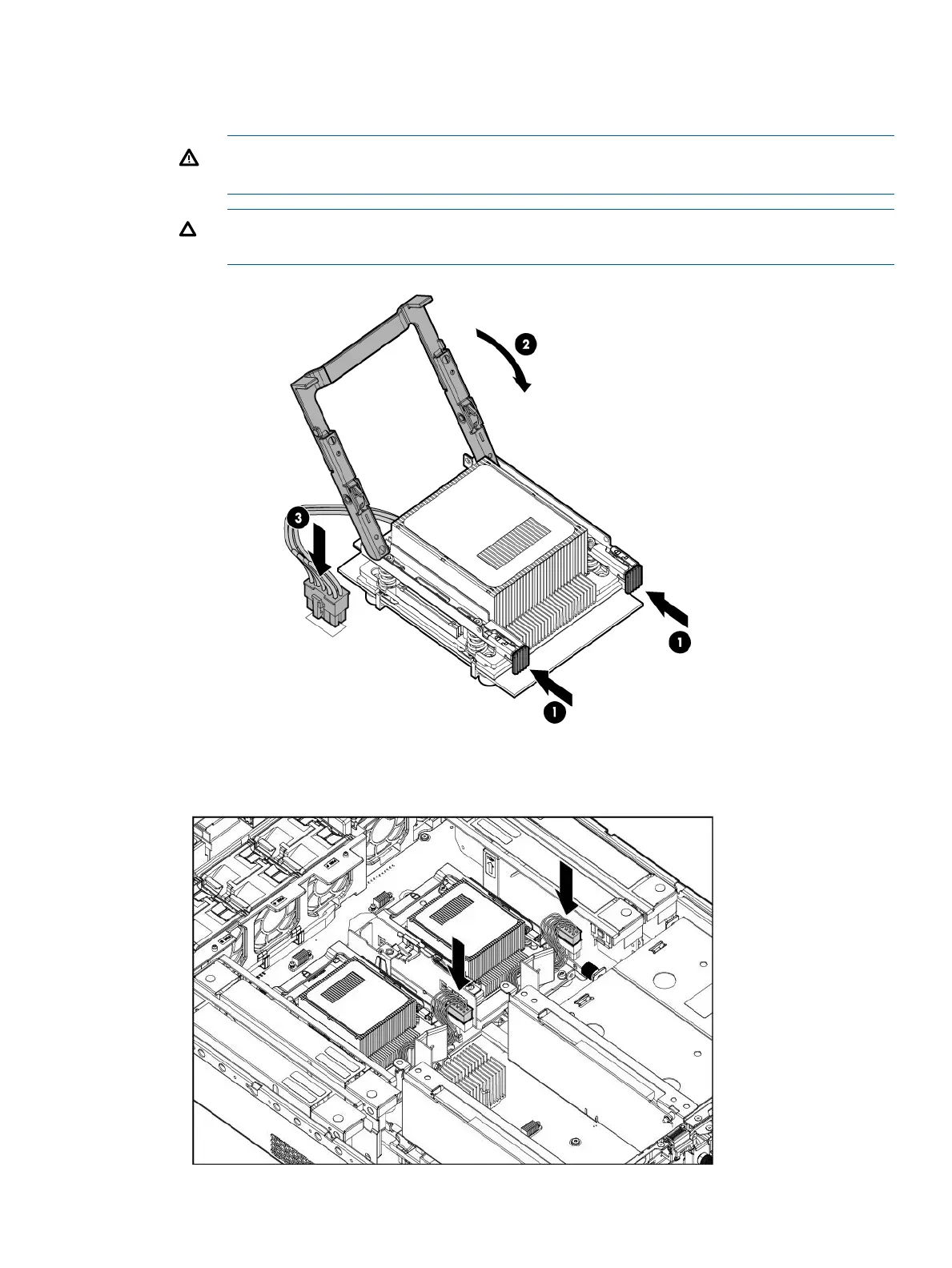

7. Secure the heat sink to the processor.

a. Slide both plastic locking tabs into place. See callout 1 in the following figure.

b. Flip the latch down. See callout 2 in the following figure.

WARNING! The heat sink locking lever can constitute a pinch hazard. Keep your hands

on top of the lever during installation to avoid personal injury.

CAUTION: To prevent thermal instability and damage to the server, do not separate

the processor module from the processor heat sink after they have been coupled.

8. Route and connect the power cord.

Installing a processor 55
