Front Bezel
1. Prepare the computer for disassembly (Preparation for Disassembly on page 31).
2. Remove the computer access panel (
Computer Access Panel on page 40).
3. Lift up the three tabs on the side of the bezel (1), then rotate the bezel off the chassis (2).

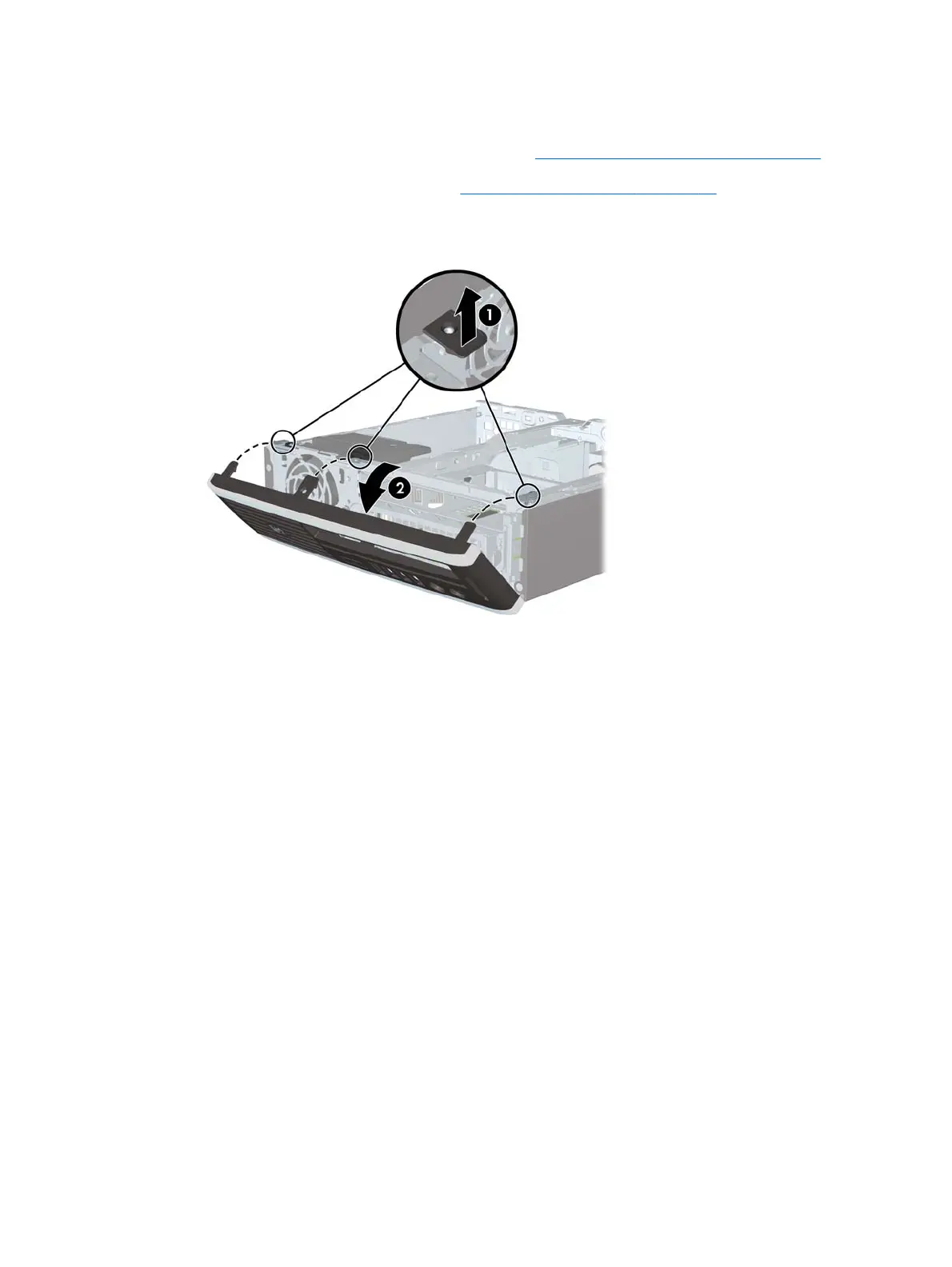

Figure 6-14 Removing the Front Bezel
To install the front bezel, reverse the removal procedure.
Front Bezel
41
