Speaker
The speaker is secured to the front of the chassis between the fan and the I/O ports.
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 31).
2. Remove the computer access panel (
Computer Access Panel on page 40).
3. Remove the front bezel (
Front Bezel on page 41).
4. Disconnect the speaker cable from the white system board connector labeled SPKR.
5. From the outside of the chassis, remove the two Torx T8 screws that secure the speaker to the
chassis (1), and then from the inside of the chassis, slide the speaker up and lift it out (2).

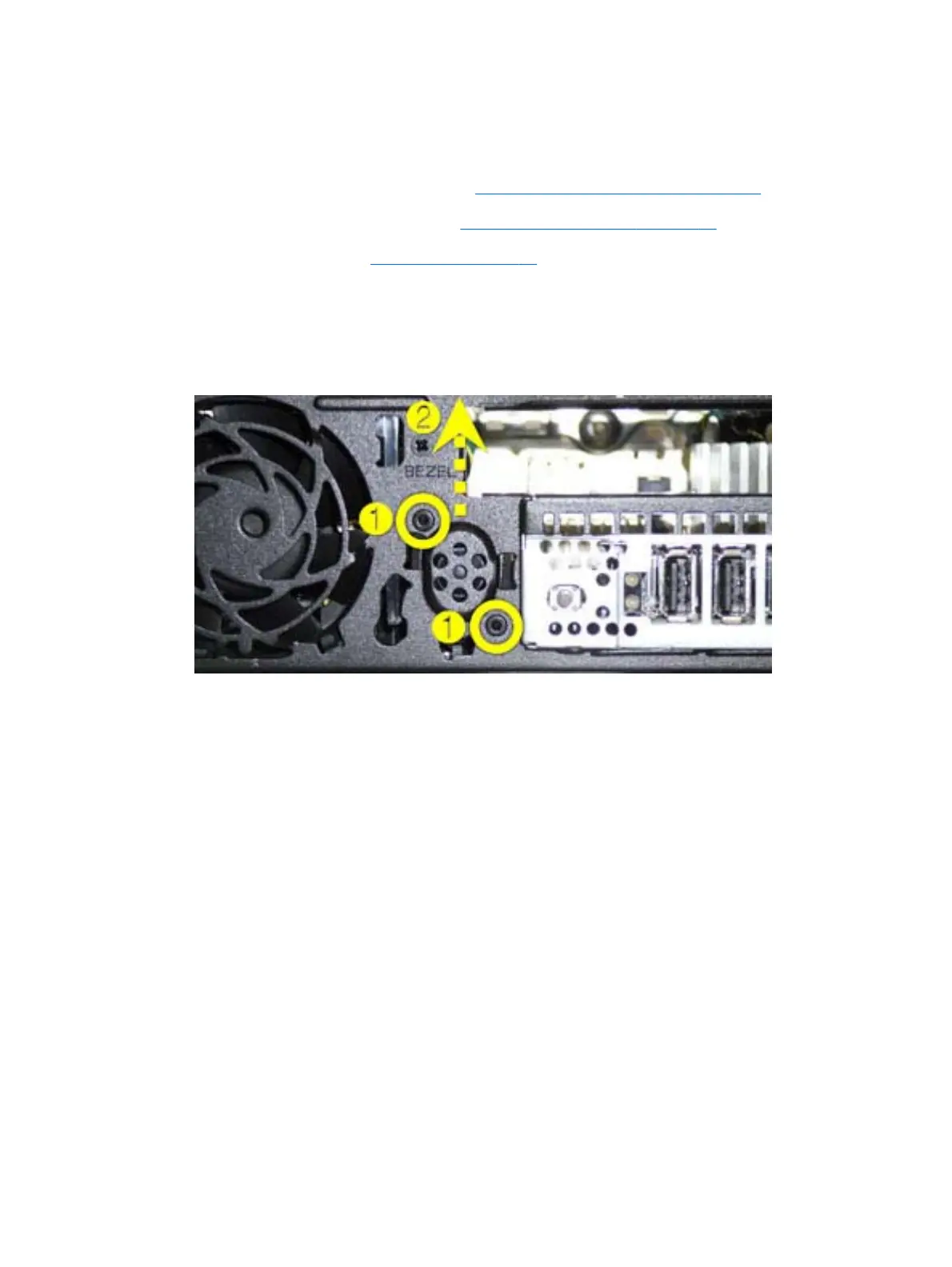

Figure 6-33 Removing the speaker
To install the speaker, reverse the removal procedure.
Speaker
59
