Installing the New Optical Drive
NOTE: If you are installing an optical drive in a bay that did not previously have a drive in
it, you must remove the access panel and the bezel blank covering the opening of the bay before
proceeding. Follow the procedures in
Computer Access Panel on page 40 and Bezel Blank
on page 42.
1. Attach the release latch to the new optical drive. Refer to Preparing the New Optical Drive
on page 49.
2. With the back of the optical drive facing the computer and the release latch on the inner side of
the drive, align the drive with the opening in the front bezel.
3. Slide the optical drive through the front bezel all the way into the bay so that it locks in place (1),
then connect the cable to the rear of the drive (2).

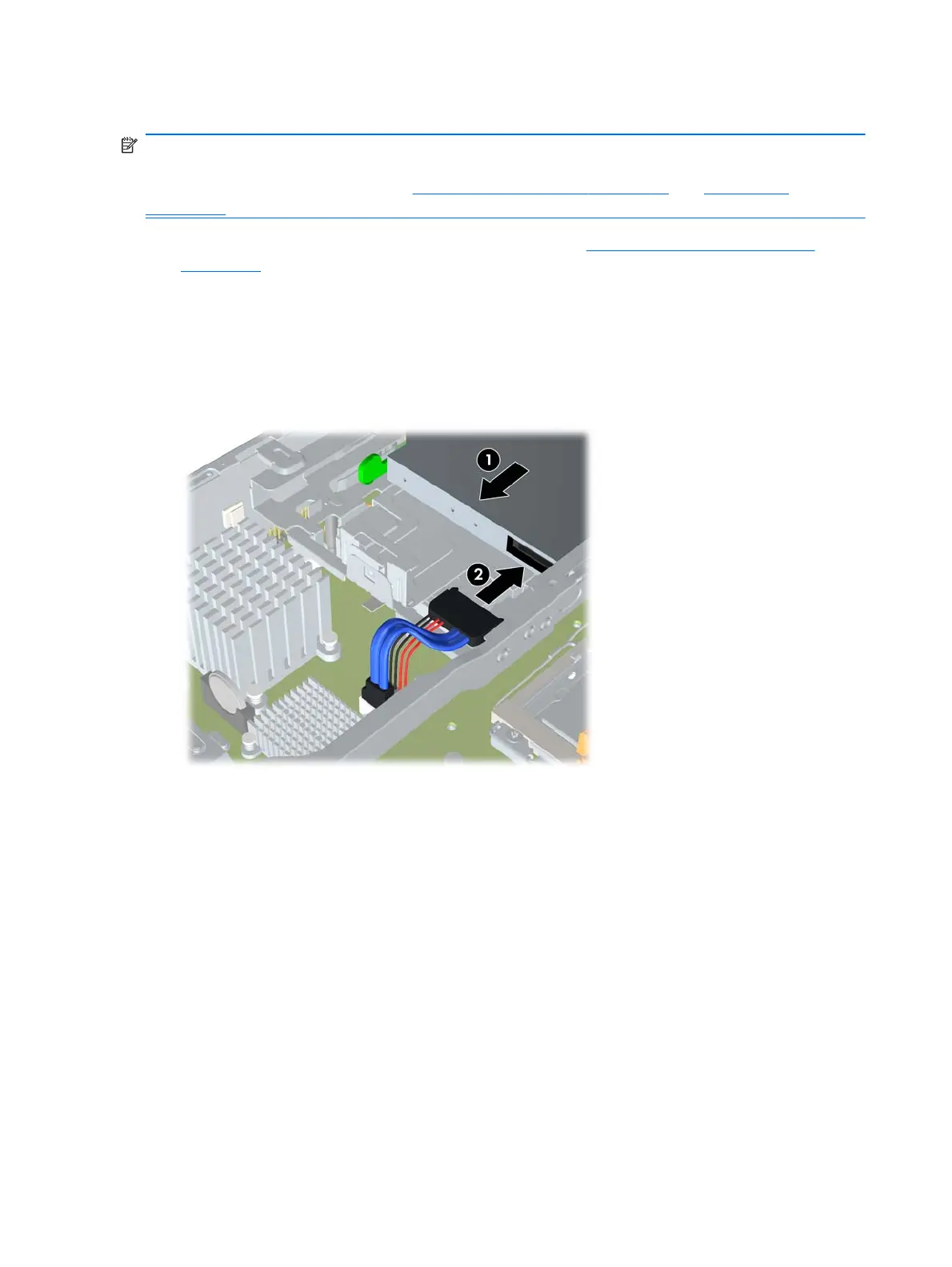

Figure 6-21 Installing the Optical Drive
50 Chapter 6 Removal and Replacement Procedures
