Bezel Blank
On some models, there is a bezel blank covering the external drive bay that needs to be
removed before installing a drive. To remove a bezel blank:
1. Remove the computer access panel (
Computer Access Panel on page 40).
2. Remove the front bezel (
Front Bezel on page 41).
3. Push the two retaining tabs that hold the bezel blank in place towards the outer right edge of the
bezel (1) and pull the bezel blank inwards to remove it (2).

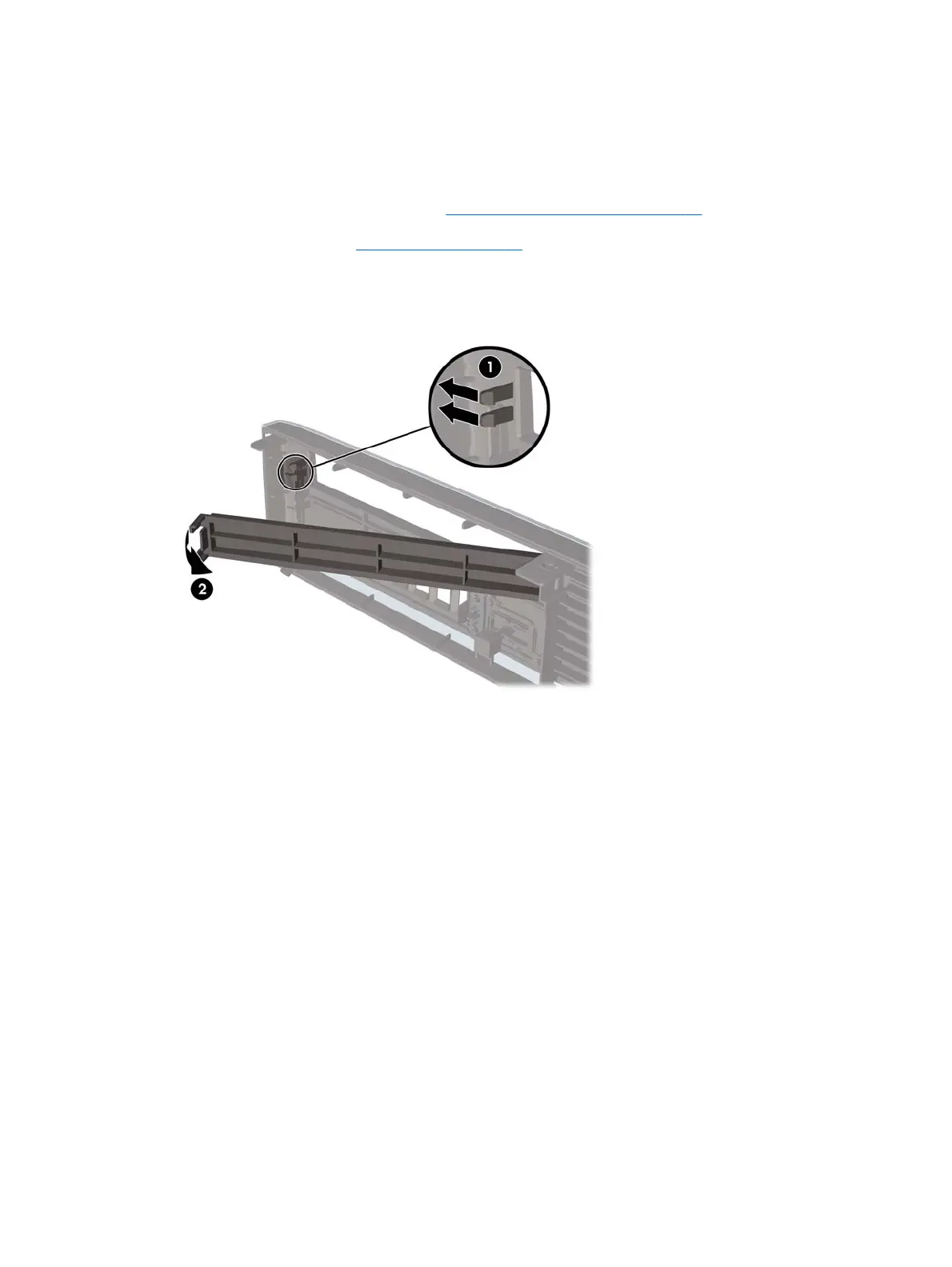

Figure 6-15 Removing a Bezel Blank
42 Chapter 6 Removal and Replacement Procedures
