HP Compaq 6005 Pro

A Connector Pin Assignments
This appendix contains the pin assignments for many computer and workstation connectors. Some
of these connectors may not be used on the product being serviced.

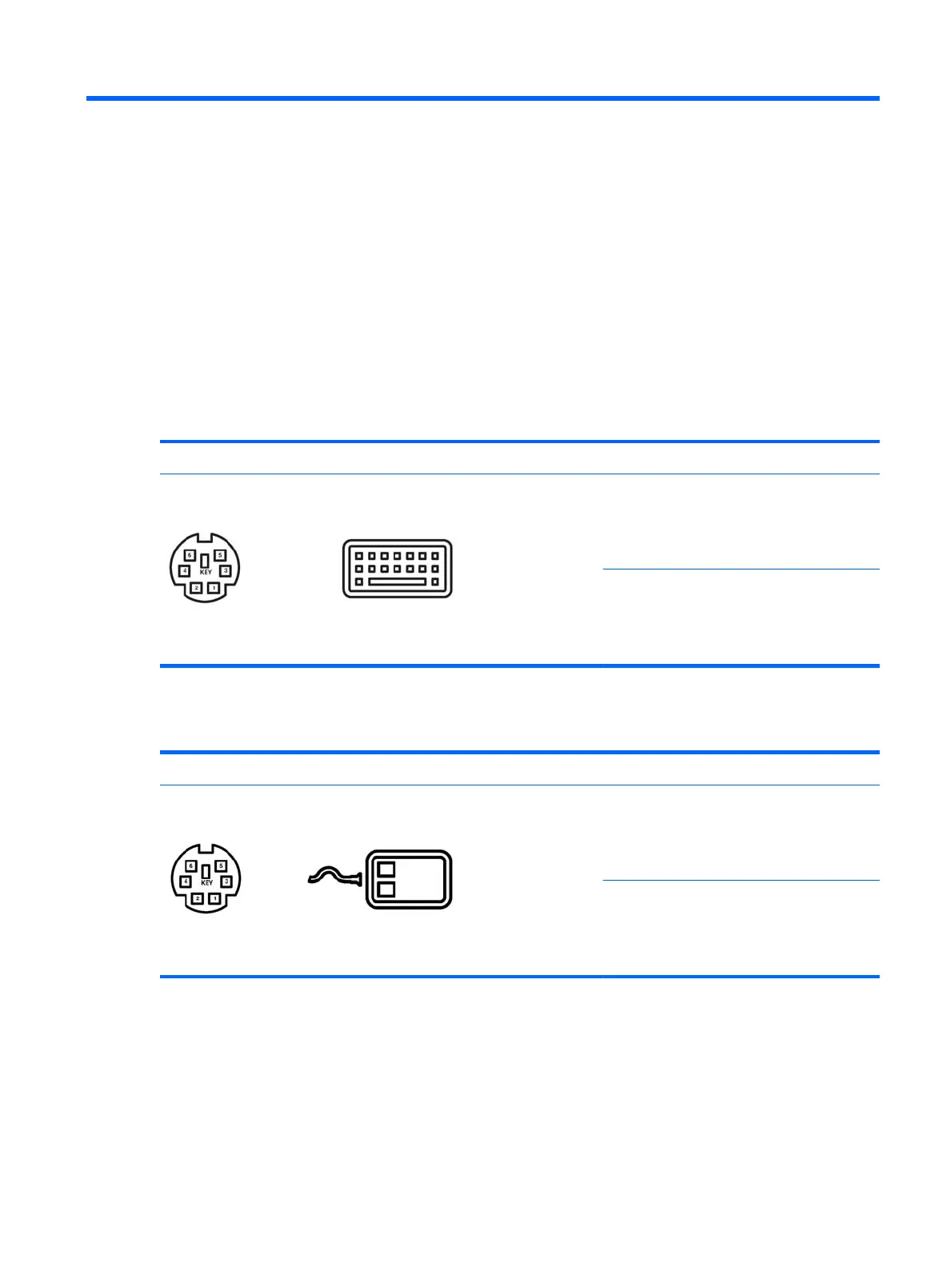

Keyboard
Connector and Icon Pin Signal
1
2
3
Data
Unused
Ground
4
5
6
+5 VDC
Clock
Unused
Mouse
Connector and Icon Pin Signal
1
2
3
Data
Unused
Ground
4
5
6
+5 VDC
Clock
Unused
Keyboard
71
