6. Lift the hard drive carrier straight up and out of the chassis.

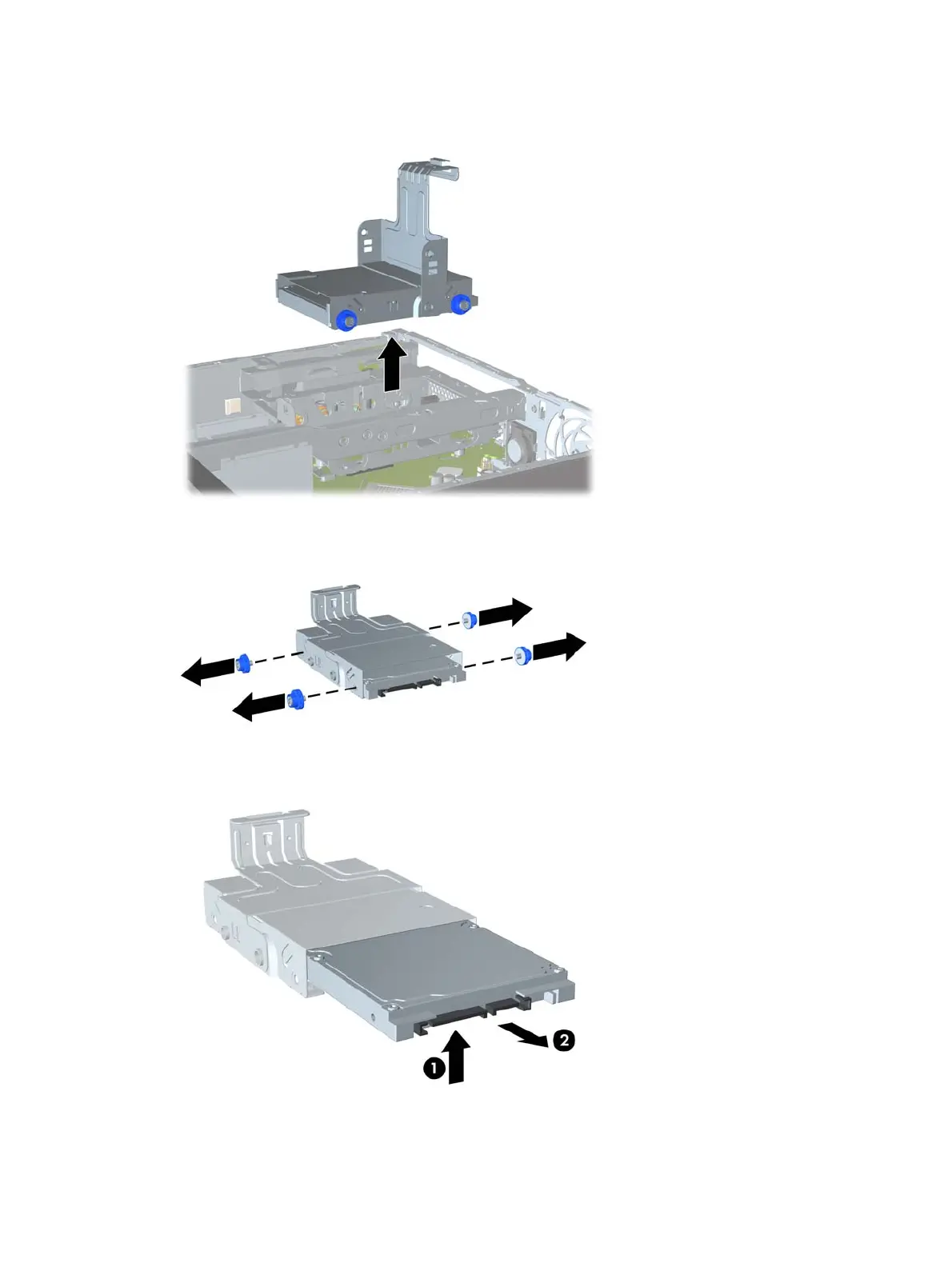

Figure 6-23 Removing the Hard Drive Carrier
7. Remove the four guide screws from the sides of the hard drive carrier.
Figure 6-24 Removing the Guide Screws
8. Lift the hard drive up to the top of the carrier (1) and slide the drive out of the carrier (2).
Figure 6-25 Removing the Hard Drive from the Carrier
52 Chapter 6 Removal and Replacement Procedures
