Drives
Hardware and Software Guide 5–11
Removing a Hard Drive Module
To remove a hard drive from the MultiBay II:
1. Save your work and close any open applications.
2. Select the Safely Remove Hardware icon in the notification
area. (A dialog box displays a list of connected devices.)
3. Select the hard drive, and then select the Stop button. (The
“Safe to Remove Hardware” message is displayed on your
screen.)

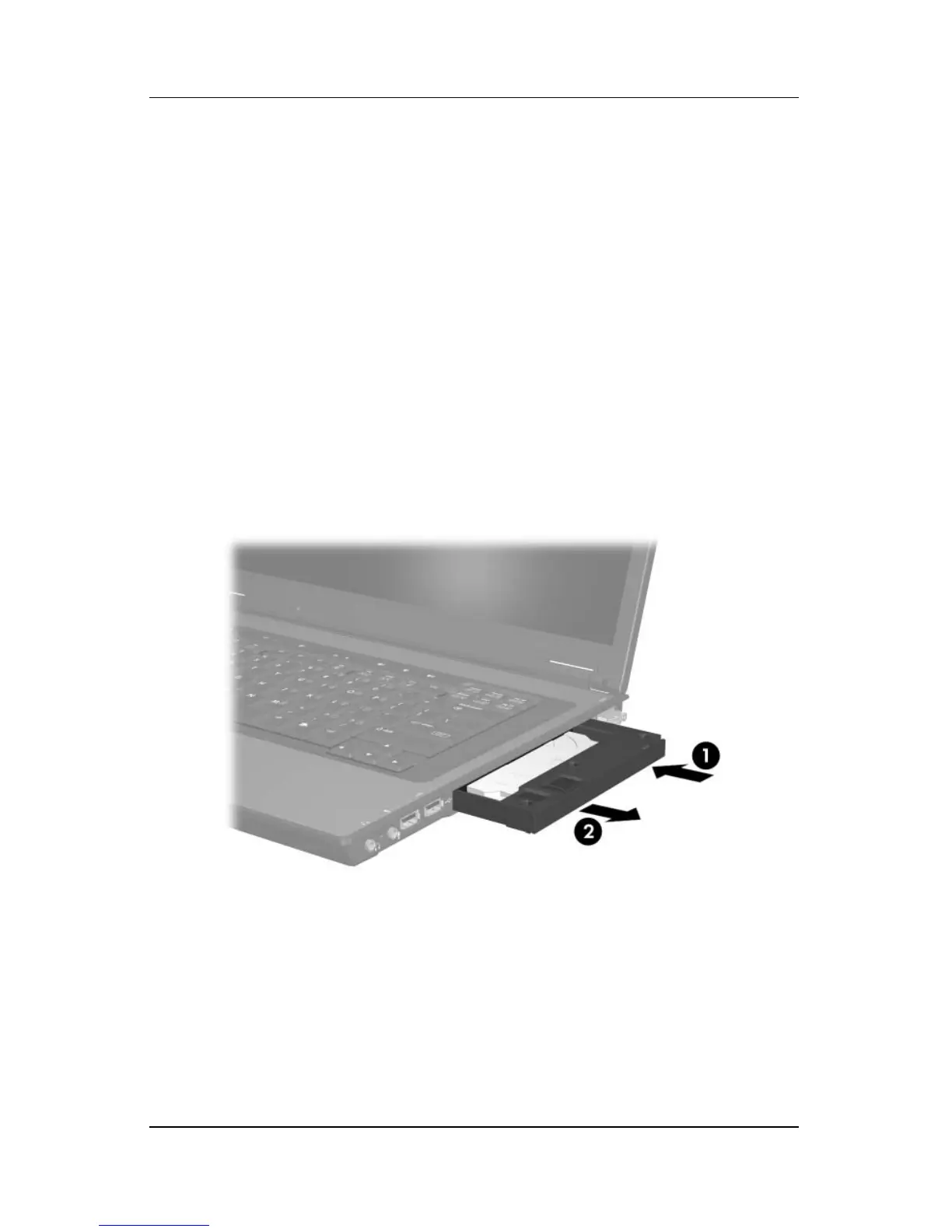

4. Gently press in on the right side of the hard drive
module 1 to unlock it.
5. Slide the hard drive module 2 from the MultiBay II.
