Memory Modules
Hardware and Software Guide 8–5

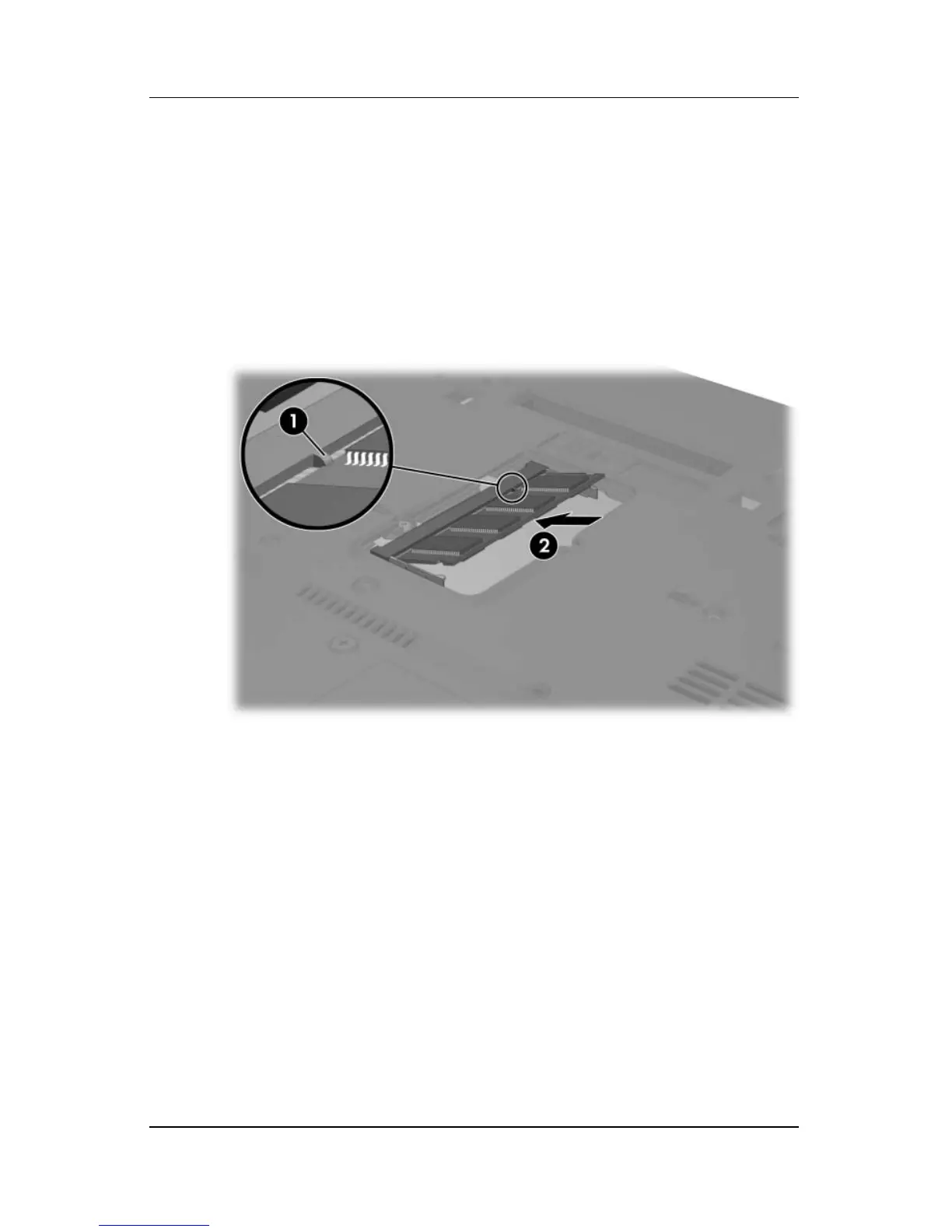

9. Insert the new memory module:
a. Align the keyed (notched) edge of the module with the
tabbed area in the memory slot 1.
b. With the module at a 45-degree angle from the surface
of the memory compartment, press the module into the
memory slot until it is seated 2.
