If you are removing a media card reader, disconnect the USB cable from the system board.
If the media card reader has a 1394 port, disconnect the 1394 cable from the PCI card.

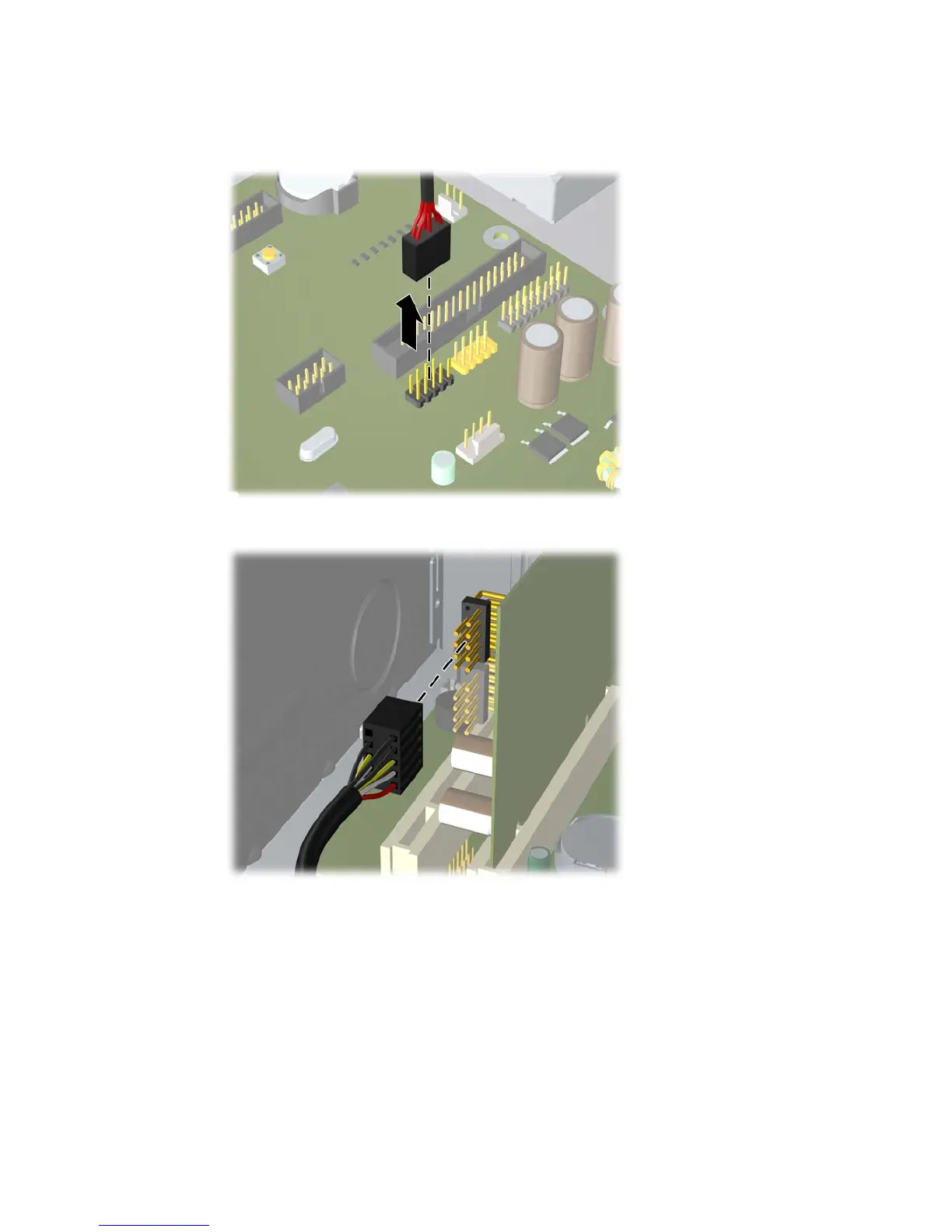

Figure 7-26 Disconnecting the Media Card Reader USB Cable
Figure 7-27 Disconnecting the Media Card Reader 1394 Cable
88 Chapter 7 Removal and Replacement Procedures Convertible Minitower (CMT) Chassis
