Hood Sensor
The hood sensor is installed in the top of the baffle that is attached to the chassis fan.
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 118).
2. Remove the access panel (
Computer Access Panel on page 125).
3. Remove the front bezel (
Front Bezel on page 126).
4. Remove the fan shroud (
Fan Shroud on page 161).
5. Remove the chassis fan (
Front Fan Assembly on page 162).
6. Lift the hood sensor straight up and out of the chassis fan baffle.

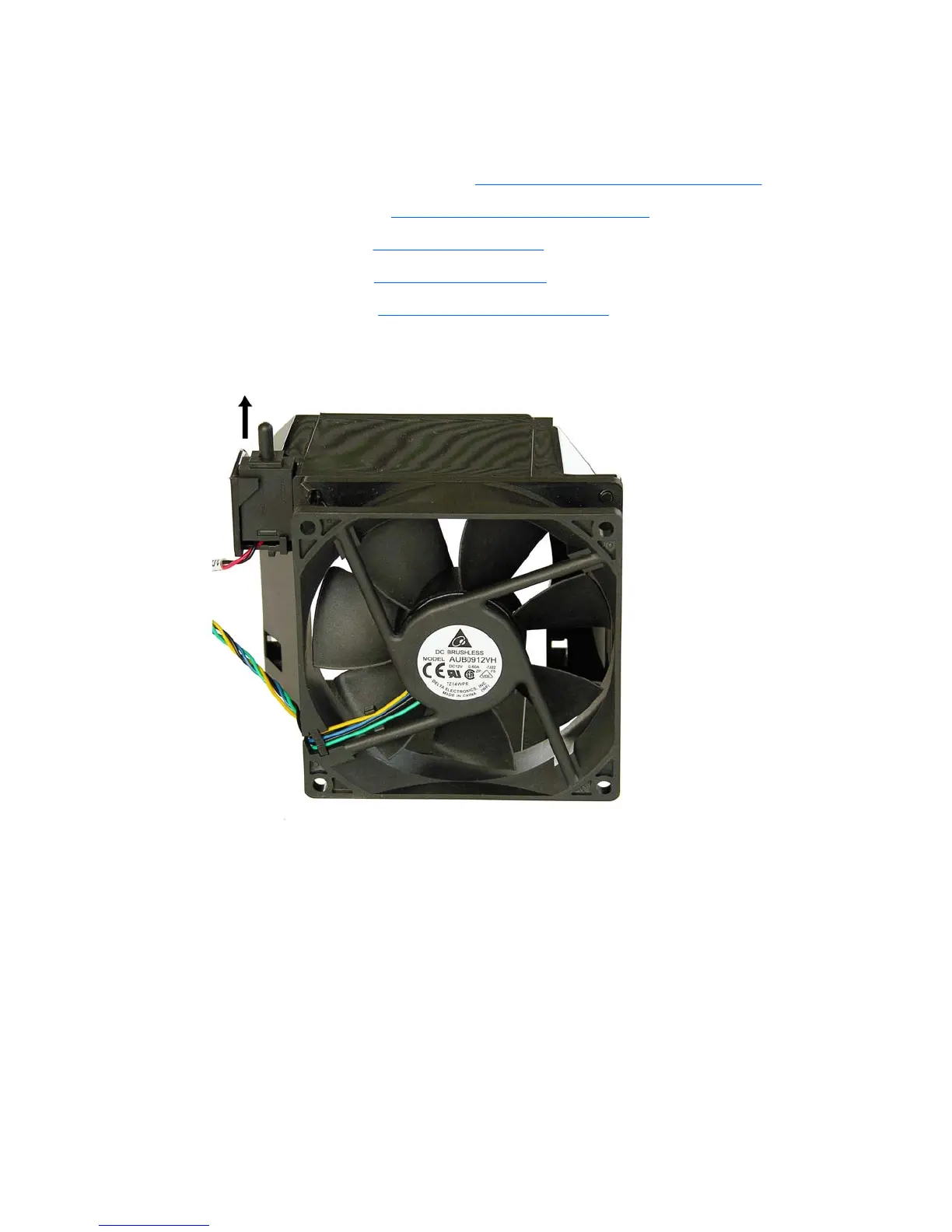

Figure 8-57 Removing the hood sensor from the chassis fan
To install the hood sensor, reverse the removal procedure.
