eSATA port assembly
1. Prepare the computer for disassembly (Preparation for Disassembly on page 63).
2. Remove the computer access panel (
Computer Access Panel on page 70).
3. Remove the two screws that secure the port to the chassis.
4. Disconnect the cable from the system board
5. Remove the port assembly from the chassis.

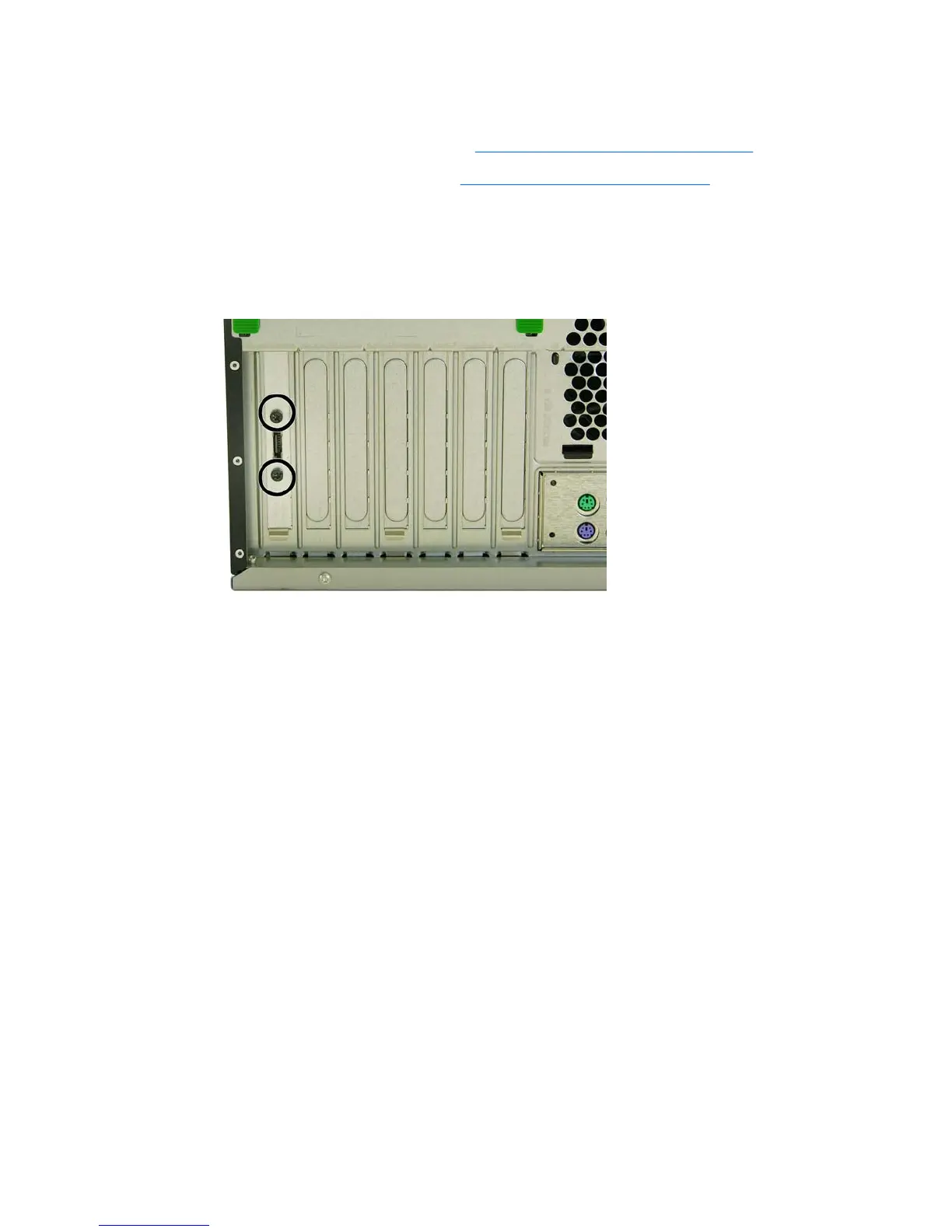

Figure 7-47 Removing the eSATA port
To install the eSATA port, reverse the removal procedure.
eSATA port assembly 103
