11. Reposition the subpanel (rotate it 90º) with the logo at the bottom, then snap it back into the bezel.

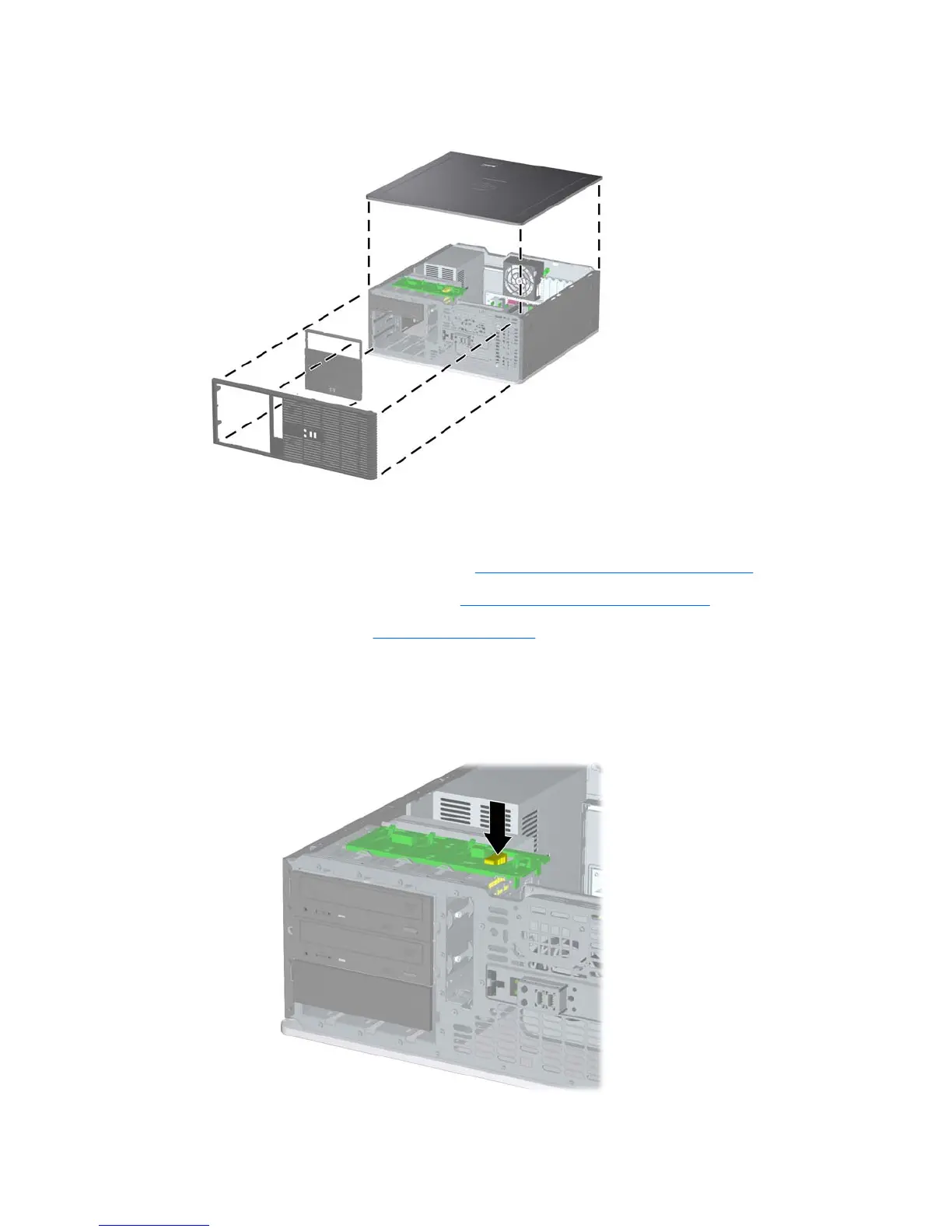

Figure 7-60 Changing from a Minitower to a Desktop Configuration
Changing from a Desktop to a Minitower Configuration
1. Prepare the computer for disassembly (Preparation for Disassembly on page 63).
2. Remove the computer access panel (
Computer Access Panel on page 70).
3. Remove the front bezel (
Front Bezel on page 71).
4. Disconnect all power and data cables from the back of the drives in the 5.25-inch drive bays.
5. To release the drives from the 5.25-inch drive bay, press down on the short yellow drivelock as
shown. While pressing the drivelock, pull the drives out of the drive bay.
Figure 7-61 Releasing the 5.25-inch Drives from the Drive Bays (Desktop)
Changing from a Desktop to a Minitower Configuration 115
