System Board Drive Connections

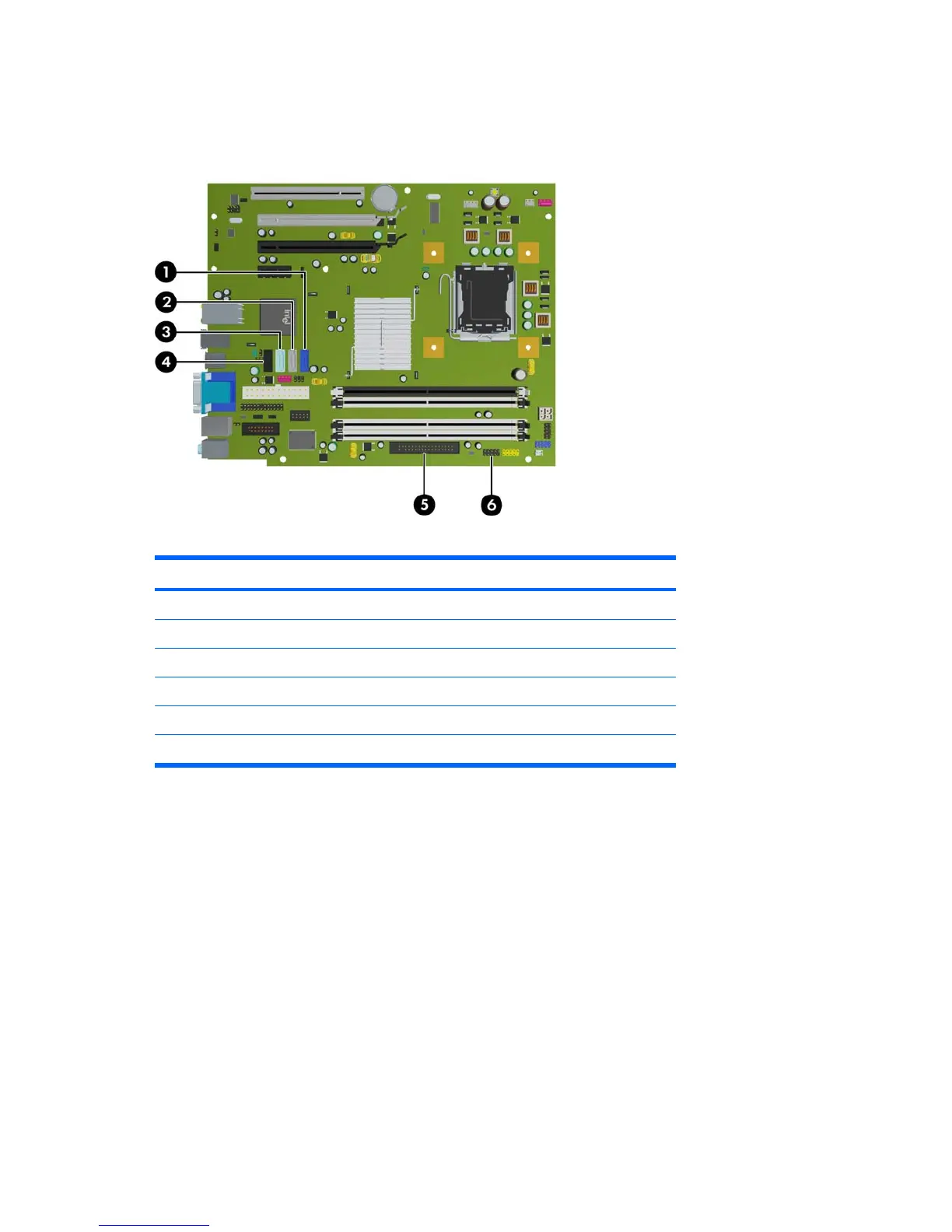

Refer to the following illustration and table to identify the system board drive connectors.
Figure 8-26 System Board Drive Connections
Table 8-4 System Board Drive Connections
No. System Board Connector System Board Label Color
1 SATA0 SATA0 dark blue
2 SATA1 SATA1 white
3 SATA2 SATA2 light blue
4 eSATA ESATA black
5 Diskette Drive FLOPPY black
6 Media Card Reader MEDIA black
142 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
