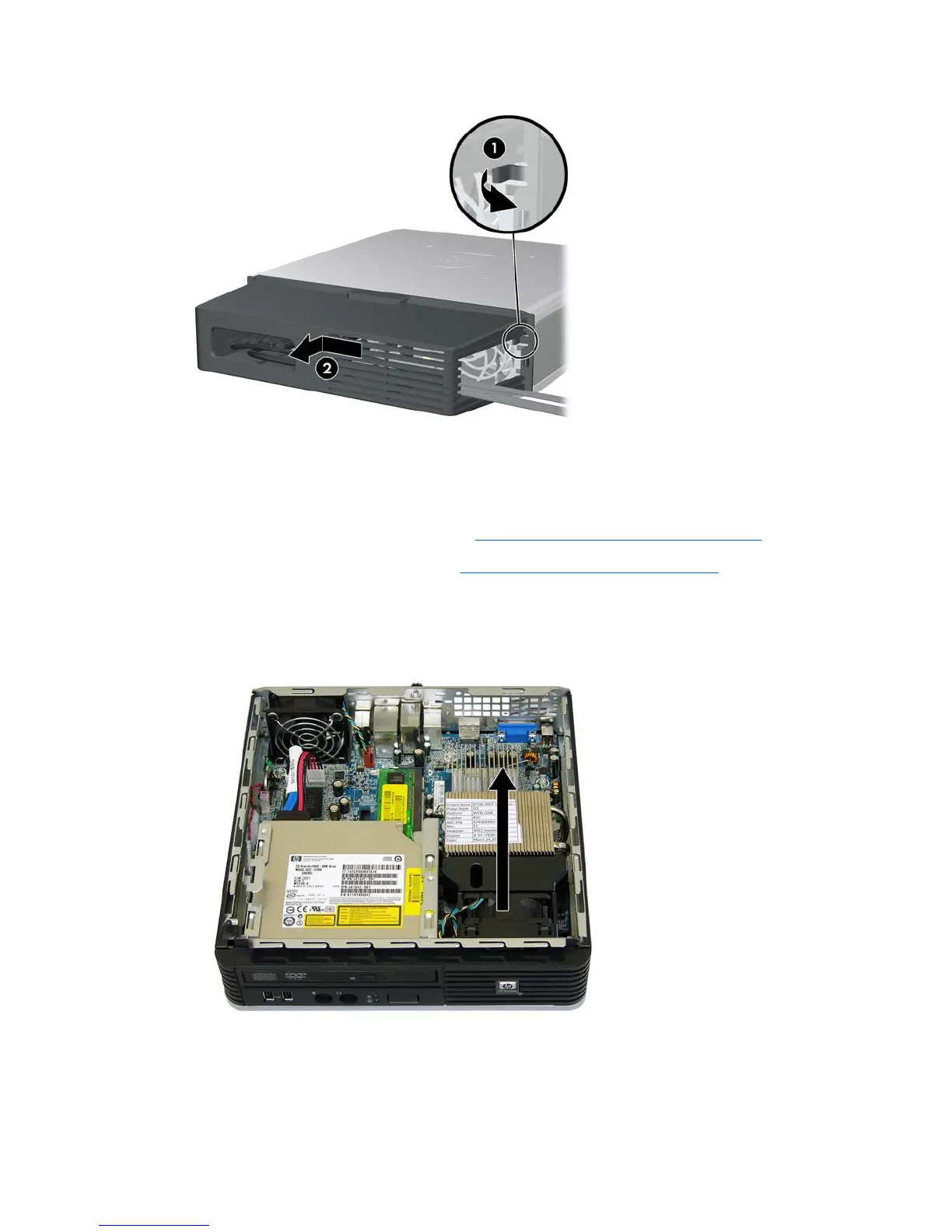

Figure 9-29 Removing a Port Cover
Front Fan
1. Prepare the computer for disassembly (Preparation for Disassembly on page 178).
2. Remove the computer access panel (
Computer Access Panel on page 183).
3. Disconnect the fan control cable from the system board.
4. Lift the fan straight up and out of the chassis.
Figure 9-30 Removing the front fan
To install the front fan, reverse the removal procedure.
Front Fan 201
