Computer Access Panel
To access internal components, you must remove the access panel:
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 178).
2. Loosen the thumbscrew on the rear of the computer (1), slide the access panel toward the front of
the computer, and then lift it off (2).

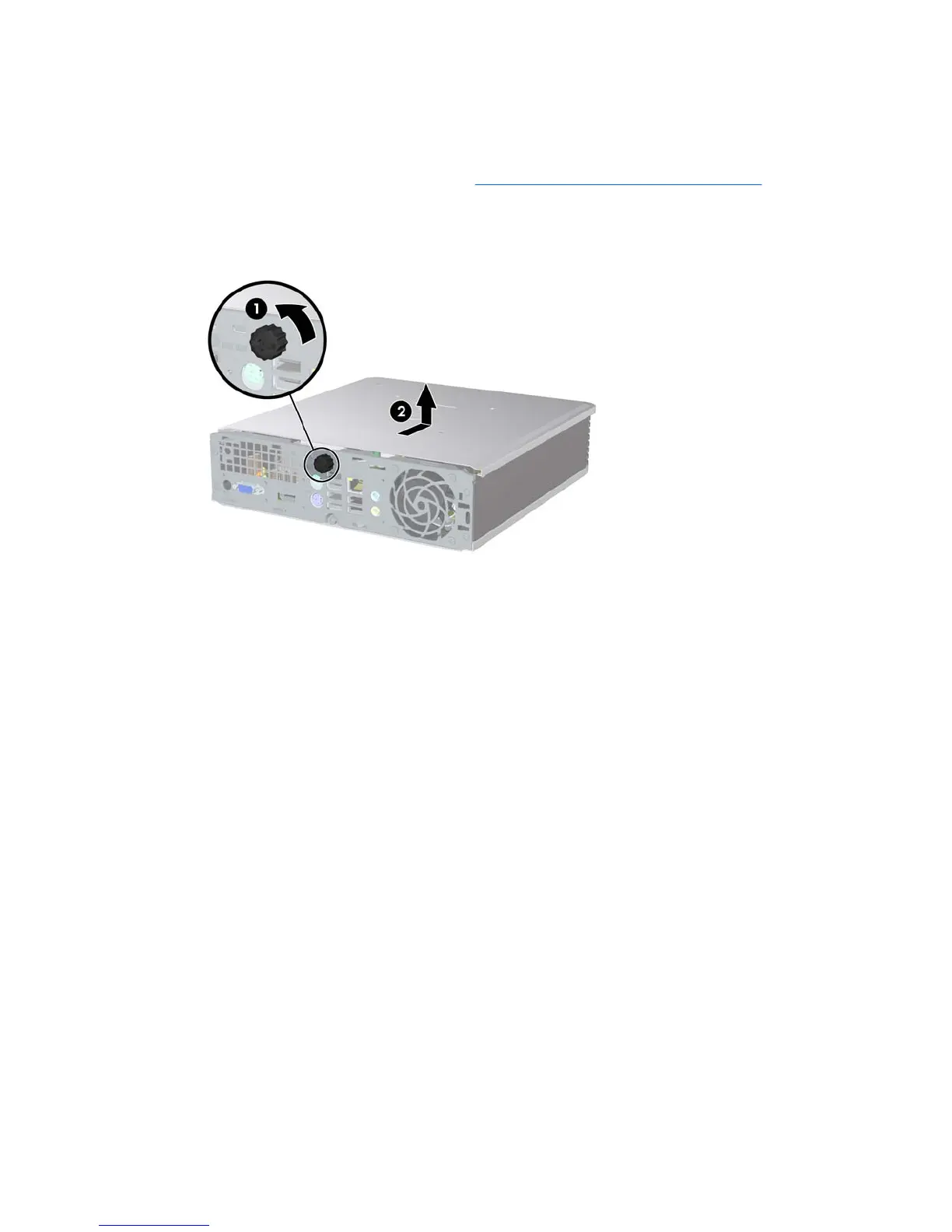

Figure 9-8 Removing the Computer Access Panel
To install the access panel, reverse the removal procedure.
Computer Access Panel 183
