Fan Shroud
1. Prepare the computer for disassembly (Preparation for Disassembly on page 118).
2. Remove the access panel (
Computer Access Panel on page 125).
3. Lift the fan shroud straight up out of the chassis.

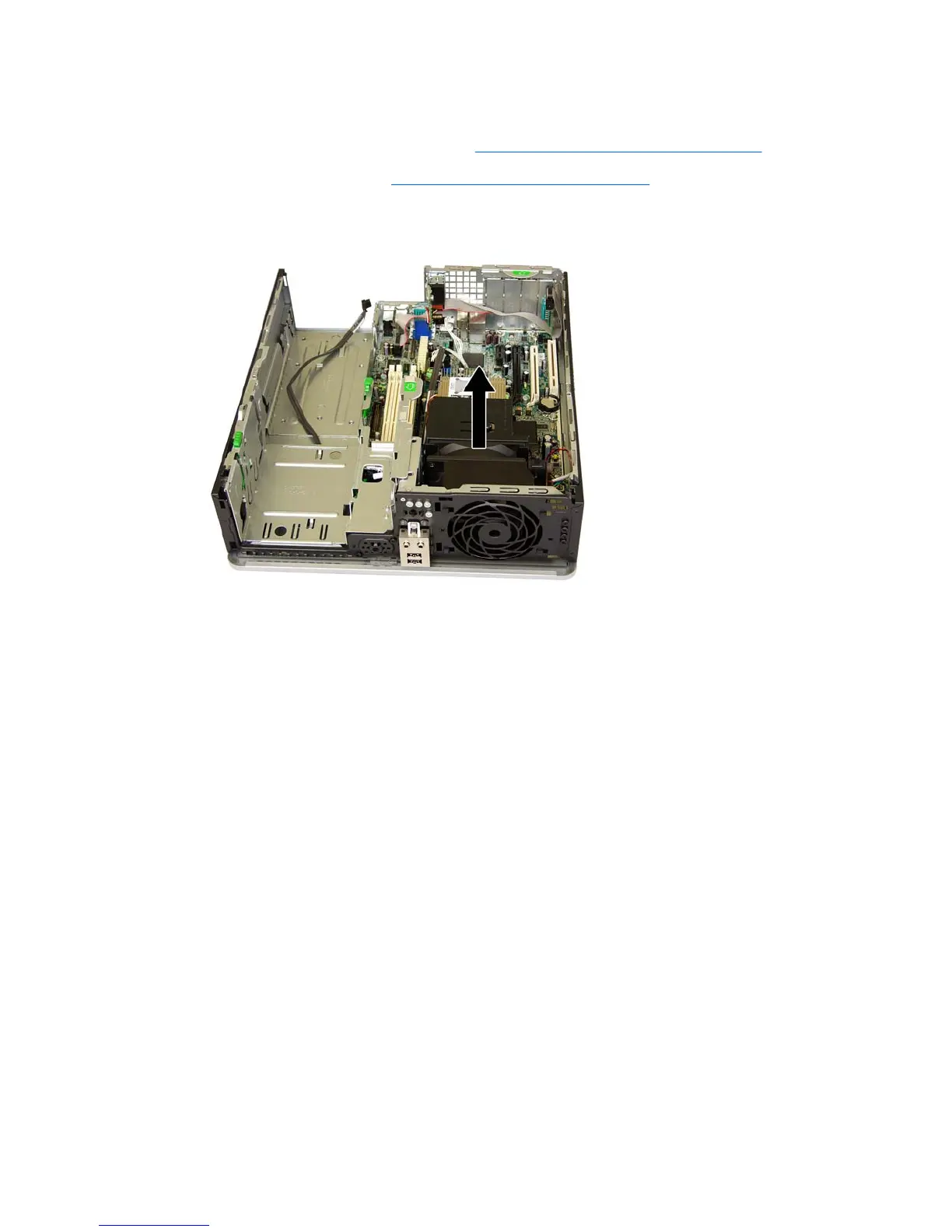

Figure 8-55 Removing the fan shroud
To install the fan shroud, reverse the removal procedure.
Fan Shroud 161
