Changing from Desktop to Tower Configuration
1. Prepare the computer for disassembly (Preparation for Disassembly on page 178).
2. Remove the computer access panel (
Computer Access Panel on page 183).
3. Remove the front bezel (
Front Bezel on page 184).
4. On the back side of the logo plate, press down on the “step” to remove the logo plate from the
bezel (1).
5. Rotate the plate 90 degrees (2) then press the logo plate back into the bezel.

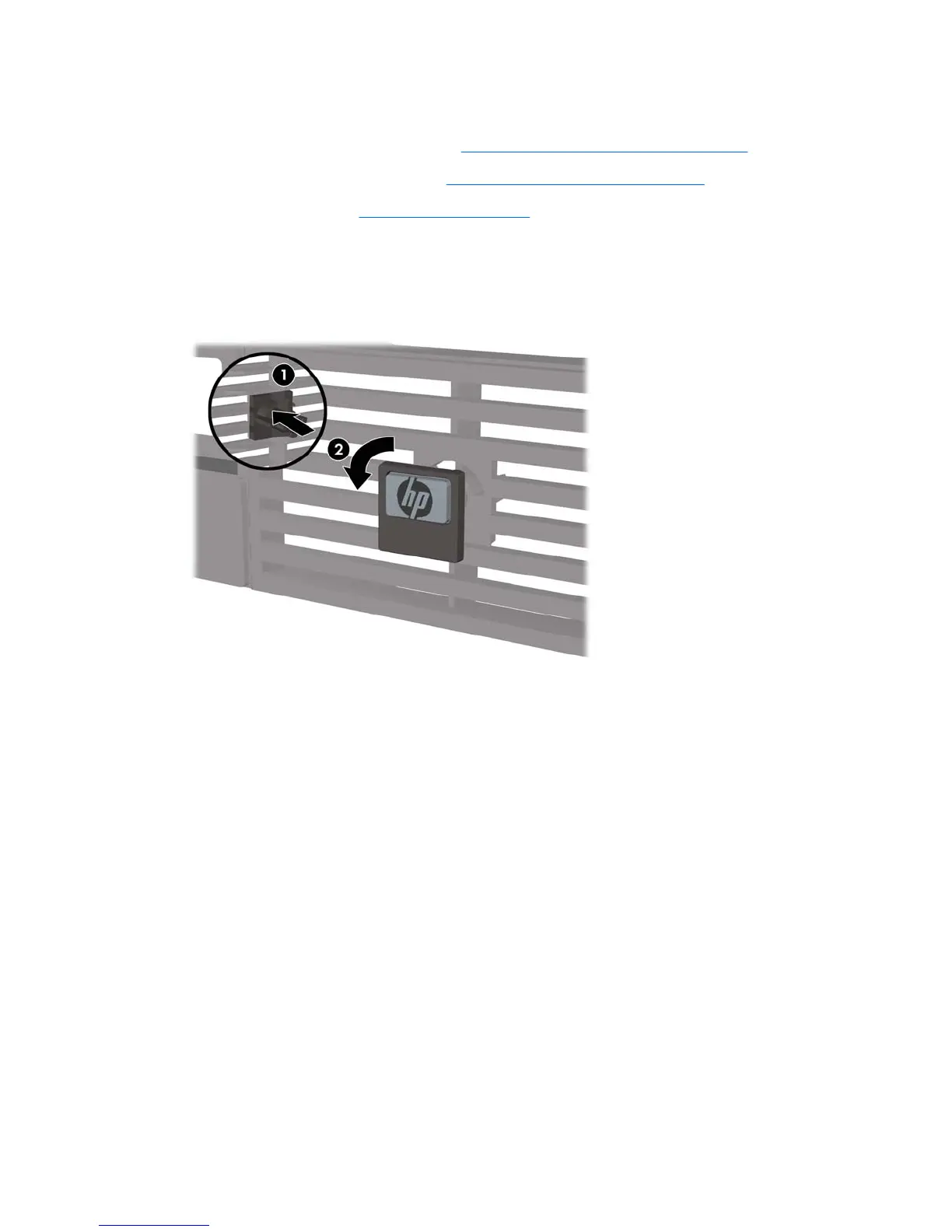

Figure 9-39 Rotating the HP Logo Plate
6. Replace the front bezel.
7. Replace the access panel.
210 Chapter 9 Removal and Replacement Procedures Ultra-Slim Desktop (USDT) Chassis
