System Board Drive Connections

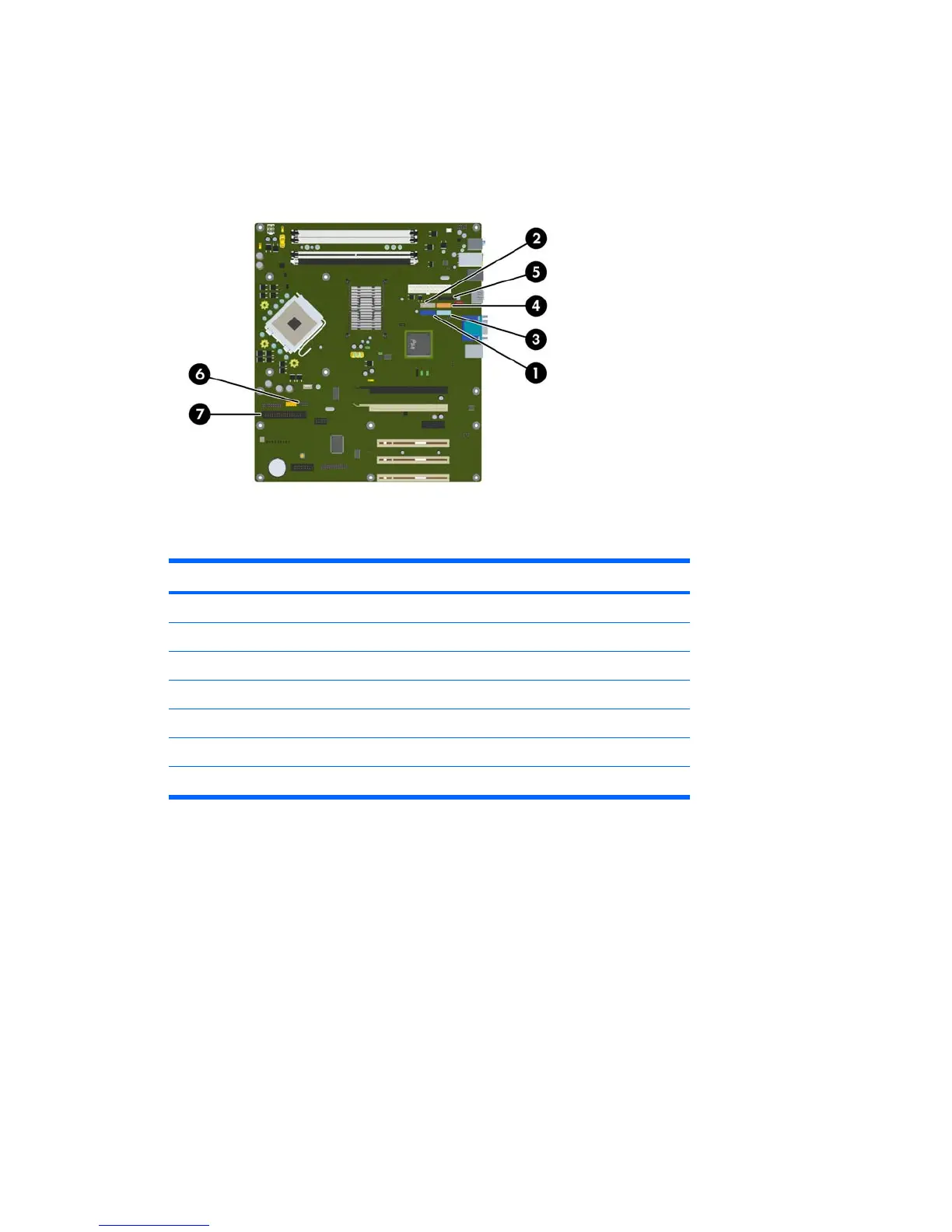

Refer to the following illustration and table to identify the system board drive connectors.
Figure 7-22 System Board Drive Connections
Table 7-3 System Board Drive Connections
No. System Board Connector System Board Label Color
1 SATA0 SATA0 dark blue
2 SATA1 SATA1 white
3 SATA2 SATA2 light blue
4 SATA3 SATA3 orange
5 eSATA ESATA black
6 Media Card Reader MEDIA black
7 Diskette Drive FLOPPY black
Drives 85
