Front Bezel
1. Prepare the computer for disassembly (Preparation for Disassembly on page 178).
2. Remove the computer access panel (
Computer Access Panel on page 183).
3. Lift the fan and shroud assembly up and place it on top of the optical drive to access the front bezel
release tabs. You do not need to disconnect the fan cable from the system board.

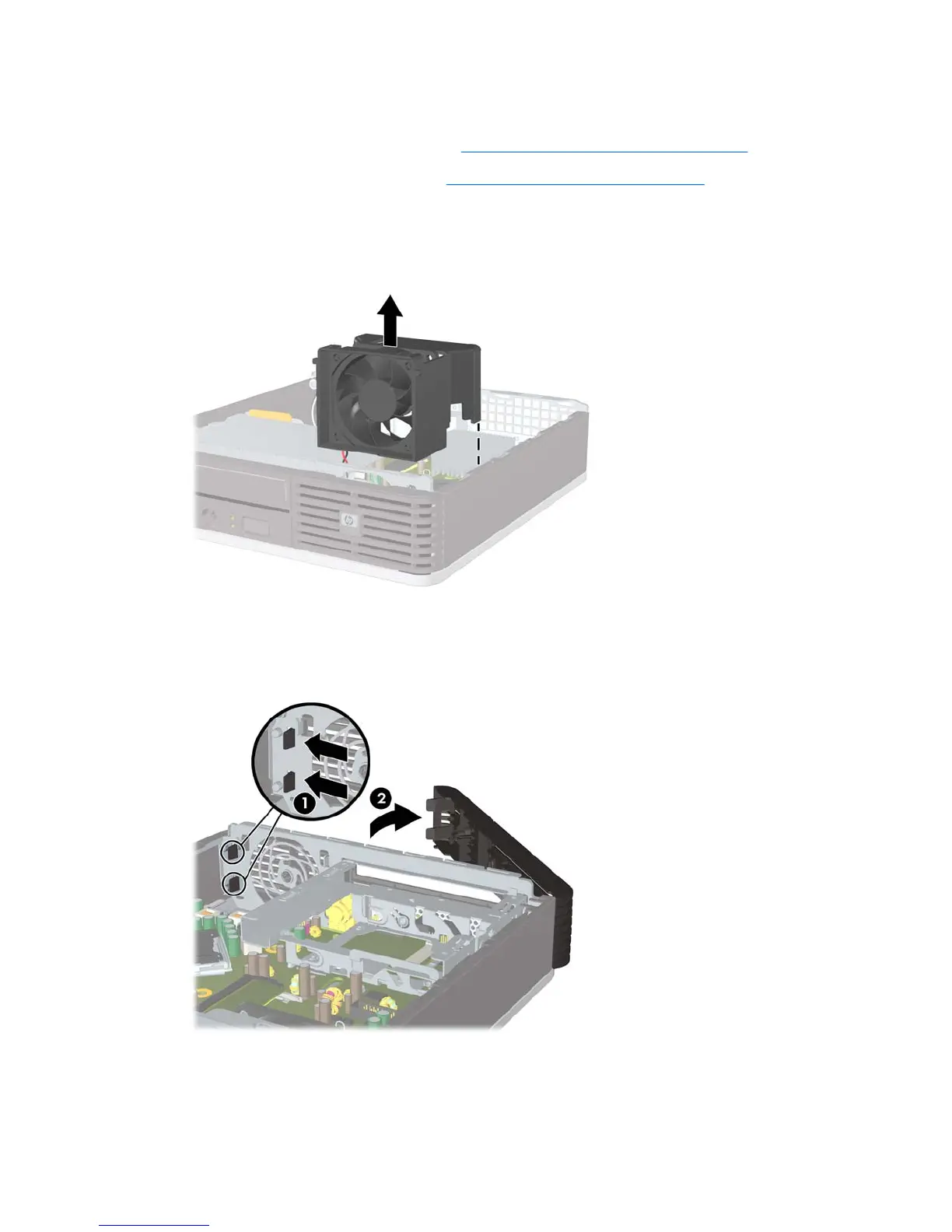

Figure 9-9 Lifting the Fan Shroud
4. Press the two release tabs on the inside of the bezel towards the right side of the computer (1) and
rotate the bezel off from right to left (2).
Figure 9-10 Removing the Front Bezel
5. Replace the fan shroud.
To install the front bezel, reverse the removal procedure.
184 Chapter 9 Removal and Replacement Procedures Ultra-Slim Desktop (USDT) Chassis
