Fan Shroud
1. Prepare the computer for disassembly (Preparation for Disassembly on page 63).
2. Remove the computer access panel (
Computer Access Panel on page 70).
3. Remove the heatsink (
Heatsink on page 104).
4. Pull up on all four shroud tabs simultaneously and slide the shroud from the heatsink.

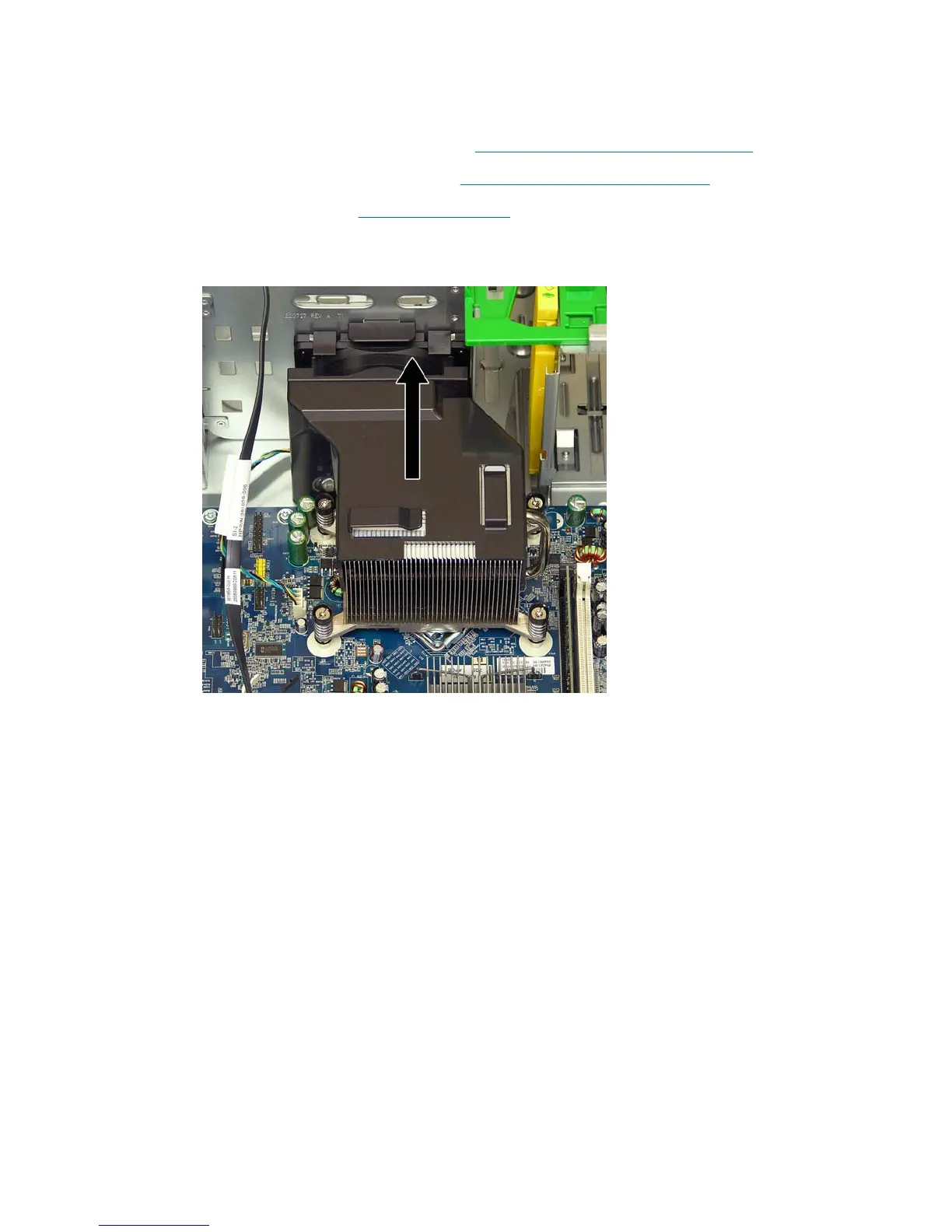

Figure 7-49 Removing the fan shroud
To reinstall the fan shroud, reverse the removal procedure.
Fan Shroud 105
