5. Slide the hard drive back to disconnect it from the carrier then lift it up and out of the carrier.

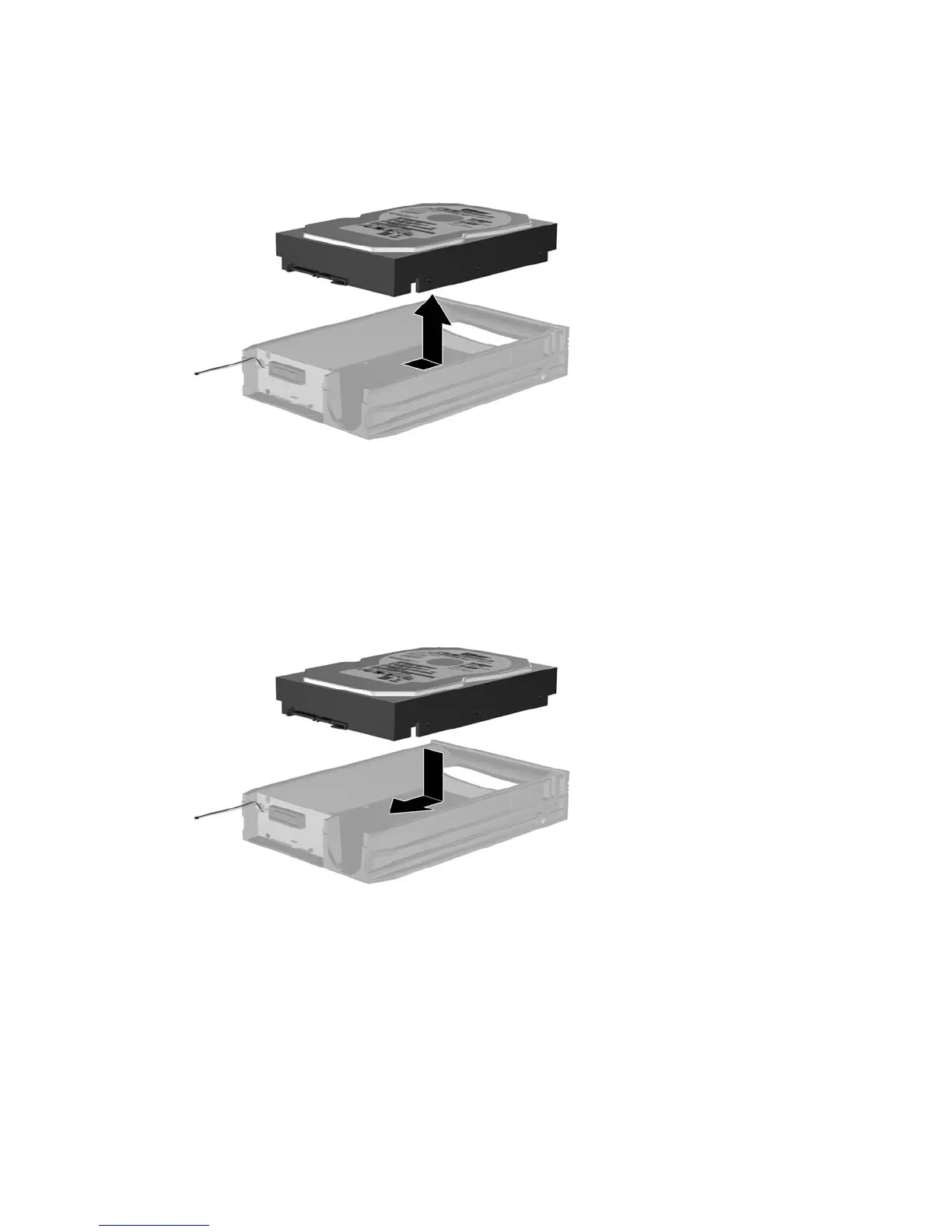

Figure 8-50 Removing the Hard Drive
6. Place the new hard drive in the carrier then slide the hard drive back so that it seats in the SATA
connector on the carrier's circuit board. Be sure the connector on the hard drive is pressed all the
way into the connector on the carrier's circuit board.
Figure 8-51 Replacing the Hard Drive
158 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
